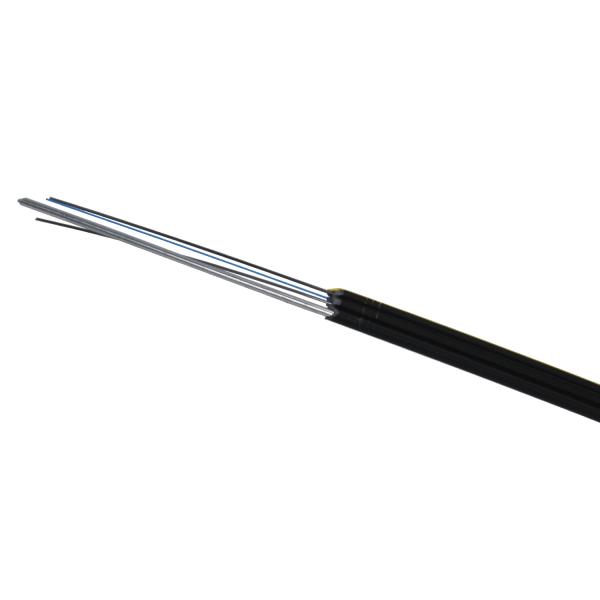

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks
FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks
FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks
FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks
Specifications
Brand Name :
TW
Model Number :
LSZH Sheath FTTH Optical Fiber Cable
Certification :
SGS ROHS REACH ISO
Place of Origin :
DONG GUAN CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000KM/mouth
Delivery Time :
5working days
Packaging Details :
Wooden Drum
Product name :
Bow Type FTTH Drop Cable
Application :
FTTH,FTTH FTTB FTTX Network,telecommunication,Telecom
Fiber count :
1,2,4
Color of Loose Tube :
Blue, Orange, Green, Brown
Strength Member :
Steel or FRP
Jacket Color :
Black, White
Cable Dimension :
3.1*2.0mm
Cable Weight :
8.2kg/Km
Description

1/2/4 Core LSZH Sheath Bow Type FTTH Drop Cable

Features

1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

2.Two parallel strength members ensure good performance of crush resistance to protect the fiber

3.Simple structure, light weight and high practicability

4.Novel flute design, easily strip and splice, simplify the installation and maintenance

5.Low smoke, zero halogen and flame retardant sheath

6.Simple structure, light weight and high practicability

Characteristics


1. 250um Fiber.
2. FRP/KFRP.
3. LSZH sheath.

Cable construction details

Items Description
Number of fiber 2-24cores
Fiber type G652D/G657A/Multimode
diameter 250µm
Strength member materia Kevlar yarn
Loose tube diameter 0.9-1.2mm
material /
Outer sheath material PVC/LSZH
diameter 1.6*2.0-3.0*6.0mm
Cable size (Height * width) /
Cable weight 5.5-28.5KG
Installation Temperature range(ºC) -20+60
Operation and transport temperature(ºC) -40+70
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 40
Min allowable
Tensile Strength(N)		 Short term 80
Crush Load (N/100mm) Long term 200
Crush Load (N/100mm) short term 1000


Standard color of fiber and tube

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- >=400 >=160 Bandwith
1300nm MHZ.KM ---- ---- >=800 >=500
Zero dispersion wavelength nm 1300-1324 >=1302,
≤1322		 ---- ---- >= 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm >= 1180,
≤1330		 >=1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

Packing and Shipping

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

Company Profile

Dongguan TW-SCIE Co., Ltd. is a subsidiary of Tewang Group. It was established in 2002. Since its establishment, the company has been adhering to the concept of "continuous innovation and pursuit of excellence", and has been committed to the research and development of optical fiber communication products and market expansion for a long time. Through unremitting efforts, it has developed into a comprehensive high-tech enterprise integrating R&D, production, sales and network engineering of optical fiber communication products. We rely on advanced equipment, mature technology and strict management to provide users with high-quality products and perfect pre-sales, sales and after-sales services. Relying on the tenet of "survive by quality, develop by innovation" and good reputation, the company has established strategic partnerships with many operators at home and abroad. The company currently has three series of products: optical cables, optical passive components, and optical fiber transceivers, which can provide customers with one-stop services.

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer NetworksFTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer NetworksFTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

FTTH Drop Cable 1 2 4 Core LSZH Sheath Bow Type Fibre Optics In Computer Networks

Our Quality & Service

DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:

1. Consistently meeting for product quality and performance;

2. Timely delivery of products and services to meet our customer's requirements;

3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Thanks for your kind review, if any requirements, pls feel free to contact us.
