Specifications
Brand Name :
OEM
Model Number :
ADSS
Certification :
CE ROHS
Place of Origin :
Dongguan,China
MOQ :
1KM
Price :
Price will be offered after talking
Payment Terms :
T/T
Supply Ability :
1000KM per week
Delivery Time :
10-15days
Packaging Details :
Wood drum
Model No :
ADSS
Loose Tube Material& Filling Material :
PBT&Jerry
Central Strength Member :
Non-Metallic
Maximum Span :
1500m
Color of Loose Tube :
Blue, Orange,Green , Brown,Red etc
Strength Material :
High Flexible Amaid Yarn
Core Moisture Protection Methodology :
Water Blocking Tape or Filling Compound
Installation Style :
Self-Support Aerial
Description

Hot sale list price double sheath outdoor 6 core fiber optic cable ADSS

Overview
Quick Details
Place of Origin:
CN;SHG
Brand Name:
TW-Scie or OEM
Model Number:
ADSS
Number of Conductors:
6
fiber count:
6 core
Fiber Type:
Single mode
fiber:
G652D
loose tube color:
at your request
Strength member material:
aramid yarn
Outer sheath material:
HDPE
Inner sheath material:
HDPE
Application:
Telecommunication
Color:
Black
Certification:
CE
Supply Ability
Supply Ability:
1000 Kilometer/Kilometers per Week
Packaging & Delivery
Packaging Details

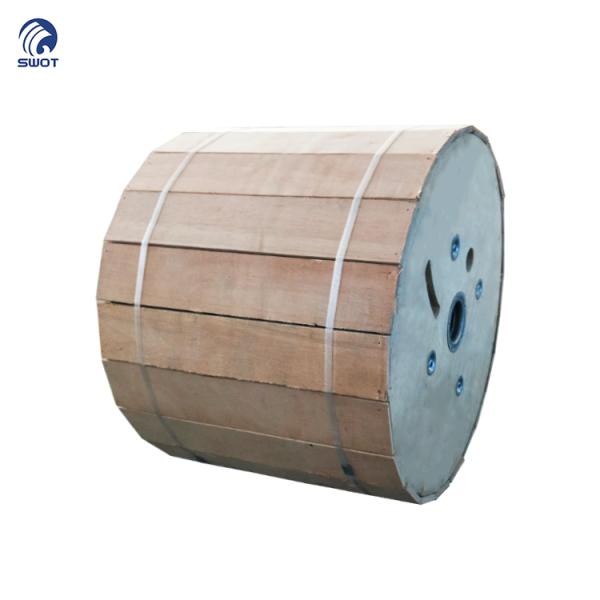

2KM/Wooden Drum
Port
Shenzhen Port, China
Picture Example:
6 Core Double Sheath of the fiber optic cable for Outdoor with high waterproof ADSS OFC cable
Lead Time :
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 10 To be negotiated
Product Description
6 Core Double Sheath of the fiber optic cable for Outdoor with high waterproof ADSS OFC cable6 Core Double Sheath of the fiber optic cable for Outdoor with high waterproof ADSS OFC cable

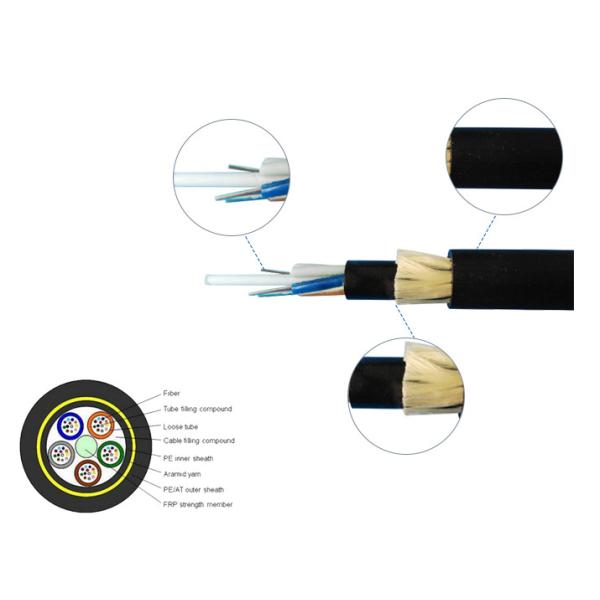

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Feature

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling

Technical Data
Span : 100m
under 110kv
2~30 core

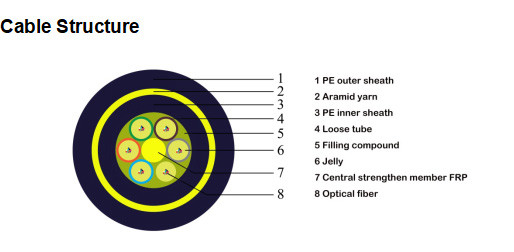

structural parameter
Central strength components : FRP
Diameter : 1.5mm
Loose tube (jelly filled )
Outer diameter :1.8mm
Inner sheath PE
Thickness : 0.9mm
Outer sheath PE
Thickness :1.8mm
Technical parameter
Outer diameter of Cable
11mm
cable cross-sectional area
95.03 mm2
Fiber model
G.652
Weight of cable
98kg/km
Rated tensile strength (RTS)
10 kn
Minmum allowed tension (MAT)
4kn
EDS
3.2kn
Young's modulus
7.8 kn/mm2
Coefficient of thermal expansion
1.8 10-6/°C
Cruss resistance
Long term :1100 n/100mm
Short term:2200 n/100mm
Permission bent radius
Long term (when running) 220 mm
Short term (when laying) 360 mm
Operating temperature
When laying -15~+60 °C
When transporting or running :-40~+70°C
Fiber excess length
0.5-0.7%
Outer sheath
PE
Ice load
5mm
6 Core Double Sheath of the fiber optic cable for Outdoor with high waterproof ADSS OFC cable
6 Core Double Sheath of the fiber optic cable for Outdoor with high waterproof ADSS OFC cable
