1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable
Specifications
Brand Name :
TW
Model Number :
FTTH drop cable
Certification :
CE,RoHS, REACH
Place of Origin :
China ( DongGuan)
MOQ :
1000m
Price :
USD$0.03~USD0.04
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
200KM PER DAYS
Delivery Time :
7~10 days
Packaging Details :
Carton
Jacket Material :
HDPE
Strength Member :
FRP/Steel
package :
Carton
Fiber :
Colored Coating fiber
Application :
FTTH
Cores :
Custom
Fiber type :
G657A2,g657
Fiber count :
1-12
Operating temperature :
-40℃- +70℃
Service :
OEM/ODM
Fiber options :
G657A2
Warranty :
20 years
Wavelength :
1260/1480nm,1310nm/1490nm/1550nm
Description

Factory price 1~4 core FRP / Steel Strength Member FTTH Covered Wire Cable

Characteristics

1.Special low-bend-sensitivity fiber provides high bandwidth and excellent

communication transmission property;

2.Simple structure, light weight and high practicability;

3.Novel flute design, easily strip and splice, simplify the installation and maintenance;

4.Low smoke, zero halogen and flame retardant sheath.

General Specifications

Cable Type

FTTH(Drop Cable)

Fiber Type

SM G.657A1

Application

LAN, CCTV etc

Recommended installation methods

Aerial

Environment

Indoor/Outdoor

Temperature Range

-40ºC to 70ºC

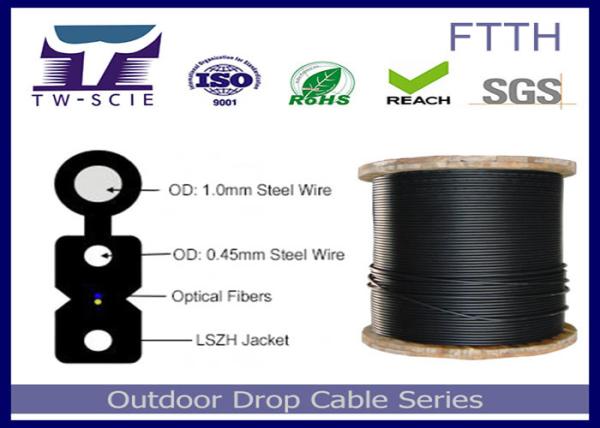

Fiber Cable Design

Item

Description

Model No

GJYXCH

1. Fiber count

1core, 2 Core,4 core

2. Cable Diameter

2.0±0.1*5.0±0.2mm

3. Cable Weight

20KG

4. Strength member

-Material

STEEL

-Diameter

0.45mm*2

5.Outer Sheath

-Material

LSZH

6. Sheath marking

-Type of marking

Laser printing

7. Messenger

OD

1.0mm

Material

Steel wire

Performance

Items

Description

Installation Temperature range

-20--+60ºC

Operation and transport temperature

-40-+70ºC

Min Bending Radius(mm)

Long term

10D

short term

20D

Allowable Tensile Strength(N)

Long term

300

short term

600

Crush Load (N/100mm)

Long term

1100

short term

2200

Technical data

Fiber range

Cable Dimenson(mm)

Cable Weight(kg/km)

Tensile(N)

Crash (N/100mm)

Min. Bend radius (mm)

Range of Temperature (℃)

Long term

Short term

Long term

short term

Dynamic

Static

1-4

3.1*2.0

8.2

60/100

100/200

500/1000

1000/2200

20H

10H

-20 ~+60

Noted: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable core use the colored coating fiber of 250um;

3. H is height of the flat cable;

4. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used;

5. The minimum bend radius ( static) is 5H when G. 657 fiber is used.

Shipping & Packing

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

Company Profile

Dongguan TW-SCIE Co., Ltd. is a subsidiary of Tewang Group. It was established in 2002. Since its establishment, the company has been adhering to the concept of "continuous innovation and pursuit of excellence", and has been committed to the research and development of optical fiber communication products and market expansion for a long time. Through unremitting efforts, it has developed into a comprehensive high-tech enterprise integrating R&D, production, sales and network engineering of optical fiber communication products. We rely on advanced equipment, mature technology and strict management to provide users with high-quality products and perfect pre-sales, sales and after-sales services. Relying on the tenet of "survive by quality, develop by innovation" and good reputation, the company currently has three series of products: optical cables, optical passive componenthe company has established strategic partnerships with many operators at home and abroad. Ts, and optical fiber transceivers, which can provide customers with one-stop services.

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

1-4 Core FTTH Drop Cable FRP / Steel Strength Member Covered Flat Optical Cable

Our Quality & Service

DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:

1. Consistently meeting for product quality and performance;

2. Timely delivery of products and services to meet our customer's requirements;

3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Solving your problem is our priority, pls feel free to contact us !
