Specifications
Brand Name :
TW-SCIE
Model Number :
GYTA 53
Certification :
ISO, RoHS, REACH, TLC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
400KM per day
Delivery Time :
15 days
Packaging Details :
wooden drum
Fiber core :
12 core
fiber core :
2-288 Core Loose Tube Optic Fiber Cable
Loose Tube :
PBT with Jelly
Armor :
Corrugated Aluminium Tape
Water blocking material :
Water Blocking Tape or Filling Compound
Central Strength Member :
Steel Wire or FRP
Brand Name of Fiber :
Corning ,Yofc,Draka, Fujikura.as Your Requirement
Description
GYTA53 Optical Fiber Cable With Double Armour And PE Sheath
Underground Cable GYTA 53 12 Core Fiber Optic Cable With Double Armour And PE Sheath

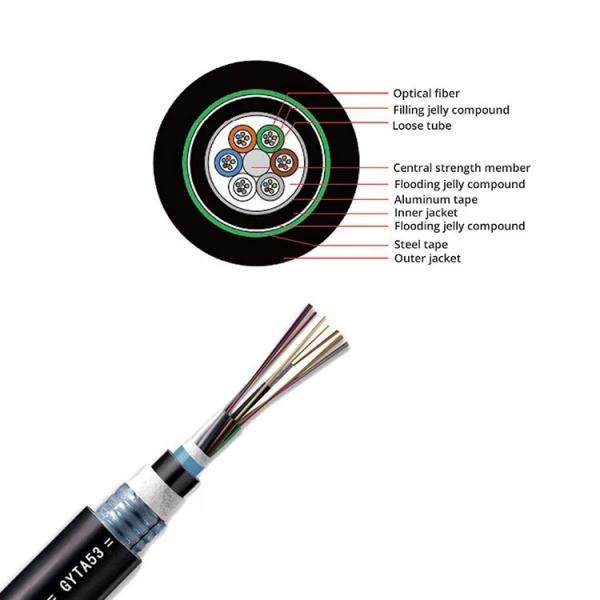

Cable Description from inside to outside
1. fiber

2. Steel-wire strengthen member

3. loose tube

4. inner sheath

5. water blocking system

6. filling compound

7. corrugated steel tape

8. outsheath


Application
1. Outdoor direct-buried or duct distribution.
2. Long distance and local area network communication.

Characteristics
1. Steel tape strengthen.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.
7. Double sheath.

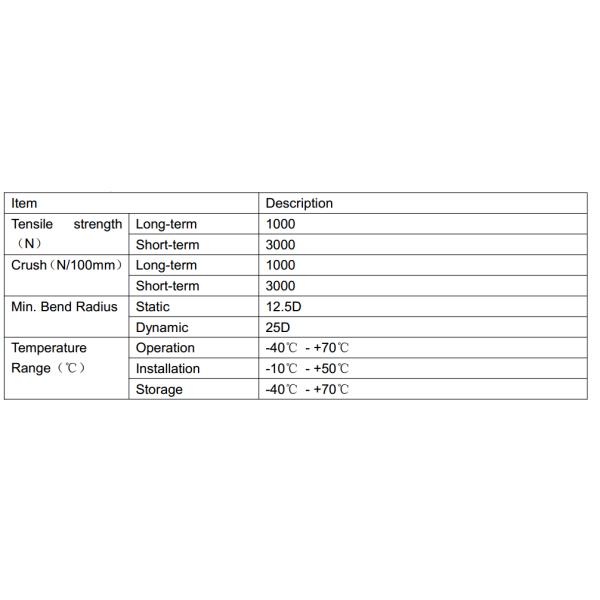

Cable construction details
Items Description
Number of fiber 2-288cores
Fiber type G652D/G657A/OM1/OM2/OM3/OM4
diameter 250µm
Strength member materia Steel tape and E-glass
Inner sheath material PE
diameter /
Outer sheath material PE
diameter 12.5~16.5mm
Cable size (Height * width) /
Cable weight 155~255KG±1KG
Installation Temperature range(ºC) -20+60
Operation and transport temperature(ºC) -40+70
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 3000
Min allowable
Tensile Strength(N)		 Short term 4000
Crush Load (N/100mm) Long term 300
Crush Load (N/100mm) short term 1000


Underground Cable GYTA 53 12 Core Fiber Optic Cable With Double Armour And PE Sheath

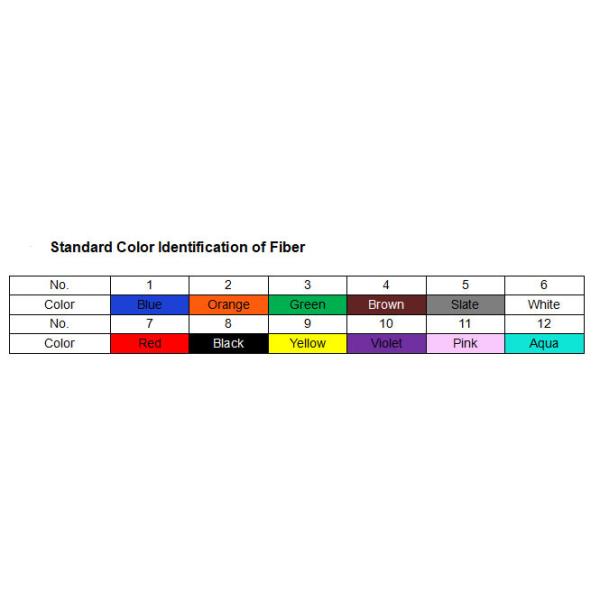

Standard color of fiber and tube

Underground Cable GYTA 53 12 Core Fiber Optic Cable With Double Armour And PE Sheath

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- >=400 >=160 Bandwith
1300nm MHZ.KM ---- ---- >=800 >=500
Zero dispersion wavelength nm 1300-1324 >=1302,
≤1322		 ---- ---- >= 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm >= 1180,
≤1330		 >=1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----

Our advantages

  • High- integrity enterprise ( 90% regular customers).
  • Hight quality with competitive price (A professional manufacturer).
  • Shortest delivery time
  • QC: ISO 9002, ROHS, UL, REACH.
  • MOQ is 1KM.
  • Exclusive testing laboratory
  • Free samples provided.
  • Customized.

Company Profile

DONGGUAN TW-SCIE CO.,LTD.is a subsidiary of Tewang Group, established in 2002.After more than ten years of unremitting efforts, it has developed into a comprehensive high-tech optical fiber communication product development.production. sales and network engineering.The company's headquarters is located in Oingxi Town.Dongguan City,a beautiful industrial town.It has two modern industrial production bases in Dongguan,Guangdong and Deyang,Sichuan, with an annual output of 20 million core kilometers of fiber optic cables.
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
