Specifications
Brand Name :
TW
Model Number :
Outdoor Dome Type Fiber Optic Closure / Fiber Optic Joint Enclosure Duct Mounting
Certification :
RoHS, SGS, ISO
Place of Origin :
dong guan china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000/ month
Delivery Time :
one week
Packaging Details :
carton packing
Product Name :
Fiber optic splice closure
Description

Outdoor Dome Type Optical Fibre Cable Joint Closure Duct Mounting ISO Approved

1. General

Fiber optic spliceDome type equipment capacity 144 core fiber Outdoor Joint Closure Duct Mounting ISO Approved

closure is used for protective connection of two or multiple optical cable and optic fiber cable distribution. It is one of commonly used equipment of user access point. Used for the outdoor connection between optical distribution cable and optical in room cable. Available for aerial,duct,direct buried application.

2. Features

A. Up-down bisection, horizontal type
B. 2 inlet/outlet
C. 96 cores max capacity
D. Slide-in-lock design, over 90 opening angle tray
E. Elastic integrated seal ensure tightening fit
F. Housing provide fire resistant, waterproof, and quakeproof for splices while handing
G. Operating Temperature: -40 ~ +65 °C

3. Application

A. Suitable for bunchy fibers

B. Aerial ,wall-mounting

C. FTTH optical fiber distributionDome type equipment capacity 144 core fiber Outdoor Joint Closure Duct Mounting ISO Approved

Product description

Dome type equipment capacity 144 core fiber Outdoor Joint Closure Duct Mounting ISO Approved

Dome type equipment capacity 144 core fiber Outdoor Joint Closure Duct Mounting ISO Approved

Dome type equipment capacity 144 core fiber Outdoor Joint Closure Duct Mounting ISO Approved

Introduction

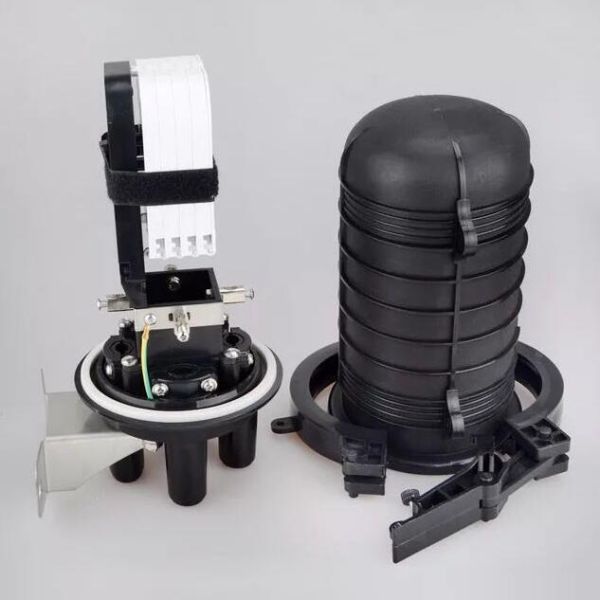

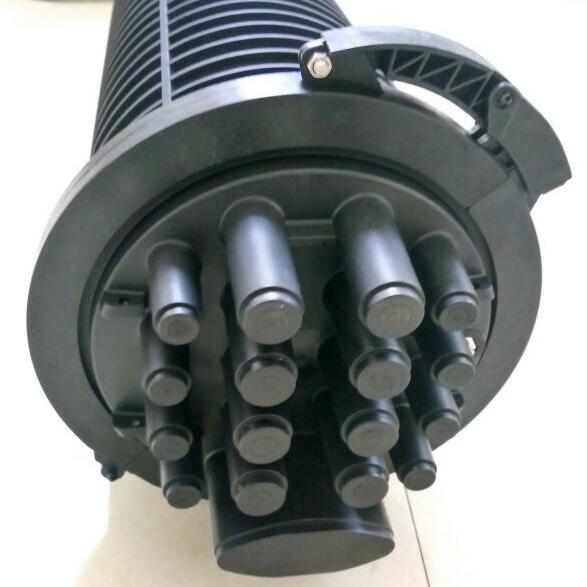

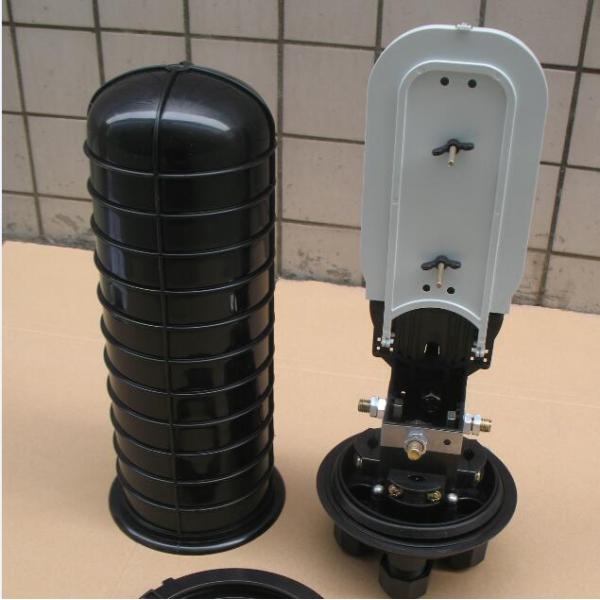

The Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has five entrance ports on the end (four round ports and one oval port). The shell of the product is made from ABS. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by heat-shrinkable tube. The closures can be opened again after be sealed, reused again without changing the sealing material.

Technical specifications

Item GL-RS
Dimension(mm) Φ210×540
Weight(Kg) 3.5
Diameter of Cable(mm) Φ7~Φ22
No. of Cable Inlet/Outlet five
Number of Fibers per Tray 24(single core)
Max. Number of Trays 4
Max. Number of Fibers 96(single core)288(ribbon0
Sealing of Inlet/Outlet ports Heat-shrinkable tube
Sealing of Shells Silicon rubber

Packaging & Delivery
P Package details : 4PCS/Carton
Port: SHENZHEN
P
Lead Time:
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 15 To be negotiated

PACKAGING & SHIPPING:

Dome type equipment capacity 144 core fiber Outdoor Joint Closure Duct Mounting ISO Approved
