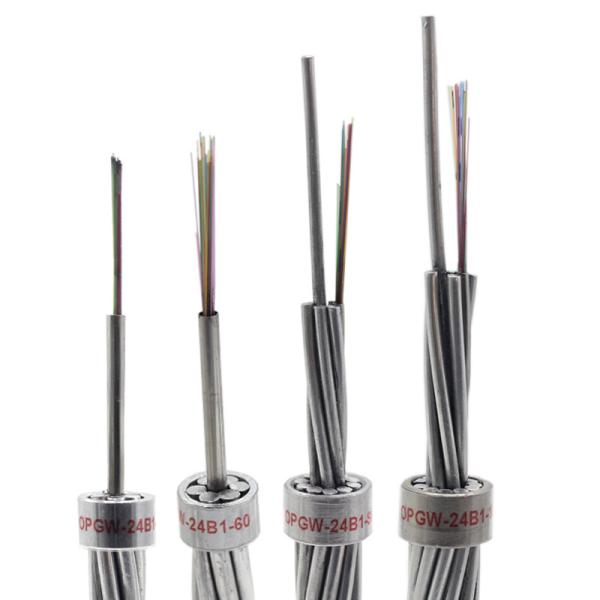

24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire
24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire
24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire
24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire
Specifications
Brand Name :
TW-SCIE or OEM
Model Number :
OPGW
Certification :
ISO9001/CE/ROHS
Place of Origin :
Dongguan, Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000 KM per day
Delivery Time :
15 Working Days
Packaging Details :
wooden drum
Fiber Count :
12-72 fibers
Fiber :
G652D, G657A1, G657A2
Cable diameter :
9-18.2mm
Bending radius :
25 times cable diameter
Package :
iron-wooden reel
Operating temperature :
-40°C to + 70°C
Application :
Telecommunication, Aerial, Telecom, Network
Description

Technical Specifications for Optical Fiber Cable

24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire

Optical Fiber Characteristics

The optical, geometrical, mechanical, and environmental characteristics of the ITU-T G.652.D optical fiber shall be in accordance with the table below.

Characteristics Specified Values Units
Optical Characteristics
Mode field diameter at 1310nm 9.1±0.5 µm
at 1550nm 10.3 ± 0.7 mm
Attenuation coefficient at 1310nm ≤0.36 dB/km
at 1550nm ≤0.23 dB/km
Attenuation non-uniformity ≤0.05 dB
Zero dispersion wavelength ( λ0) 1300 ～1324 nm
Max zero dispersion slope (S0max) ≤0.092 ps/(nm2·km)
Polarization mode dispersion coefficient(PMDQ) ≤0.2
Cut-off wavelength (λcc) ≤1260 nm
Dispersion coefficient 1288～1339nm ≤3.5 ps/(nm·km)
1550nm ≤18 ps/(nm·km)
Effective group index of refraction (Neff) at 1310nm 1.466 －
at 1550nm 1.467 －
Geometric characteristic
Cladding diameter 125.0±1.0 µm
Cladding non-circularity ≤1.0 %
Coating diameter 245.0±10.0 µm
Coating-cladding concentricity error ≤12.0 µm
Coating non-circularity ≤6.0 %
Core-cladding concentricity error ≤0.8 µm
Cladding / coating concentricity error ≤12.0 µm
Mechanical characteristic
Curling ≥4 m
Proof stress ≥0.69 GPa
Coating strip force Average value 1.0-5.0 N
Peak value 1.3-8.9 N
Macro bending loss Ф60mm, 100 circles, at 1550nm ≤0.05 dB
Ф32mm, 1 circles, at 1550nm ≤0.05 dB

Cable Characteristics

Conponent and Parameter

Overhead ground wire made of aluminum-clad steel wire (AS) and stainless steel tube containing optical fiber

Cable type

OPGW-48B1.3-190[205;185.4]

OPGW Cross Section

24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire

Structure Material No. Material Diameter
Fiber G.652.D 48
Center 20%AS wire 1 Diameter 4.0mm
Layer 1 SUS Tube 4 Diameter 4.0mm
20%AS wire 2 Diameter 4.0mm
Layer 2 20%AS wire 12 Diameter 4.0mm

OPGW Specifications

Items Technical Data
Stranded Core, layer 1, layer 2
Stranding direction Outer layer is right hand
Cable diameter (Nominal) 20.0mm
Cable Weight (Approx.) 1365kg/km
Supporting Cross Section AS Wire 188.5mm2
Rated Tensile Strength (RTS) 205kN
Modulus of Elasticity (E-Modulus) 162.0kN/mm2
Thermal Elongation Coefficient 13.0×10-6/K
Maximum Working Stress (40%RTS ) 82.0kN
Everyday Stress(EDS)(18%～25%RTS) 36.9~51.25kN
DC Resistance at 20℃ 0.442 ohm/km
Short time current (1.0s, 40℃～200℃) 13.62kA
Short time current Capacity I2t 185.4kA²s
Minimum bending radius Installation 30 times of cable diameter
Operation 15 times of cable diameter
Temperature Range Installation -10℃~+60℃
Storage & shipping -40℃~+60℃
Operation -40℃~+80℃

Fiber and Loose Tube Color Identification

The individual fibers and loose tubes shall conform to the TIA/EIA-598-A standard and use the color code specified below.

Steel tube 1 (No.1-12 fibers) : Single mode optical fiber (SM)

Fiber Colors

NO. 1 2 3 4 5 6 7 8 9 10 11 12
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua

Steel tube 2 (No.13-24 fibers) : Single mode optical fiber (SM)

One black tracer (50mm pitch)

NO. 13 14 15 16 17 18 19 20 21 22 23 24
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua
▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌

Steel tube 3 (No.25-36 fibers) : Single mode optical fiber (SM)

One black tracer (100mm pitch)

NO. 25 26 27 28 29 30 31 32 33 34 35 36
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua
▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌

Steel tube 4 (No.37-48 fibers) : Single mode optical fiber (SM)

One black tracer (150mm pitch)

NO. 37 38 39 40 41 42 43 44 45 46 47 48
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua
▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌ ▌

Packing & Shipping & Payment

Scrollable Wooden Drums. 2000m to 6000m/drum

24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire

24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire

24 Core Aluminum Tube OPGW Fiber Optic Cable Cladding Non Circularity ≤1.0% for Replacement of aerial ground wire
