Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member
Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member
Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member
Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member
Specifications
Brand Name :
TW-SCIE or OEM
Model Number :
ADSS
Certification :
SGS ROHS REACH ISO
Place of Origin :
Dongguan, Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
2000 km/per day
Delivery Time :
15days

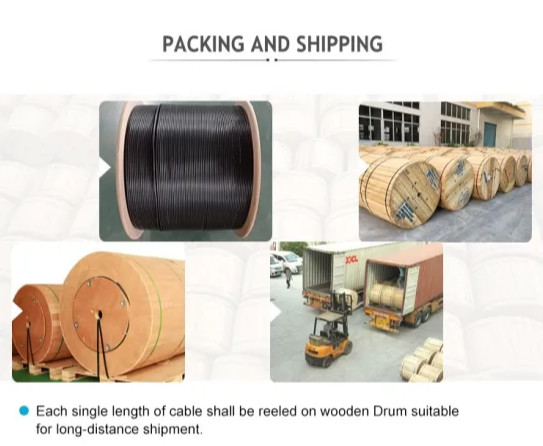

Packaging Details :
Wooden Drum
Type :
ADSS
Fiber count :
2-288
Operating temperature :
-40°c +70°c
Outer sheath :
PE/AT
Jacket color :
black or as requested
Strength member :
Kevlar Aramid Yarn
Description

All Dielectric Self-Supporting ADSS Cable / Optical Fiber Cable ADSS

ADSS fiber optic network cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.

Properties

1. Up to 288 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.


Applicable Fields


1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.


Technical Date

(for 24 core fiber, 800m span)

Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600

Structure & characters

1.Loose tube with non-metallic strengthen member
2.High flexible amaid yarn
3.Can work at electric field<=25KV/m in a long period

Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member

Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member

Production Process

Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member

Our Certificate

Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member

Networking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen MemberNetworking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen MemberNetworking ADSS Fiber Optic Cable PE Sheath Loose Tube With Non Metallic Strengthen Member

Products & Services

DONGGUAN TW-SCIE Co,. LTD has been committed to the production of optical cables for more than 20 years and Has a number of certificates and two production bases.The company produces and develops outdoor optical cables, indoor optical cables, ADSS, OPGW, etc. Over the years, it has accumulated a group of loyal customers at home and abroad, winning reputation with quality, and earning trust with integrity


Please feel free to contact us for cooperation and excellent service!
