OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance
OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance
OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance
OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance
Specifications
Brand Name :
TW-SCIE or OEM
Model Number :
ADSS
Certification :
SGS ROHS REACH ISO
Place of Origin :
Dongguan, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
2000 km/per day
Delivery Time :
15days
Packaging Details :
Wooden Drum
Application :
Telecommunication,Aerial/Duct
Type :
ADSS
Fiber count :
2-288
Outer sheath :
PE/AT
Color :
Black or Customized
Oem :
accpet
Description

All Dielectric Self-Supporting ADSS Cable / Optical Fiber Cable ADSS

Properties


1. Up to 288 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.


Applicable Fields


1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.

3.Low-voltage transmission and distribution system.
4.Railways and Telecommunications pole route.

Structure characters

1.Loose tube with non-metallic strengthen member

2.High flexible amaid yarn

3.Can work at electric field<=25KV/m in a long period

4.High tensile strength & long term reliability

Technical Date

(for 24 core fiber, 800m span)

Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600

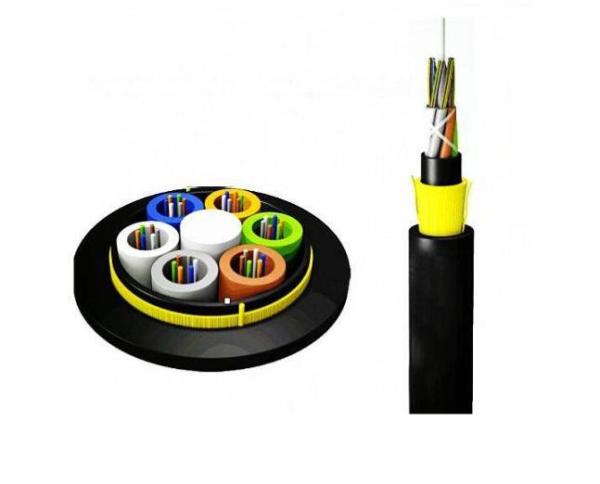

Product Structure


OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance

OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance

Our Company


OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance

OEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull PerformanceOEM Non Metal Central Loose Tube ADSS Fiber Optic Cable Strong Anti Pull Performance

Our Quality & Service


DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Please feel free to contact us for cooperation and excellent service!
