6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
Specifications
Brand Name :
TW-SCIE
Model Number :
GYTY53
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
1000 meter
Price :
0.3
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
15 Working Days
Packaging Details :
Customize
Outer sheath material :
PE
Outer Sheath Color :
Black
Loose tube material :
PBT or Jelly
Single Armour Material :
Corrugated aluminium tape
Waterblocking Material :
Water Blocking Tape or Filling Compound
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
installation methods :
buried
Operating Temperature :
-40 Degree ~ +60 Degree
Description

Outdoor Non-Metallic Mutil-Core Sm Strength Member Fiber Optical Cable

6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath


Product Description
This Outdoor Double Armoured Optic Fiber Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. Outdoor Double Armoured Optic Fiber Cable are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Features
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible bending radius

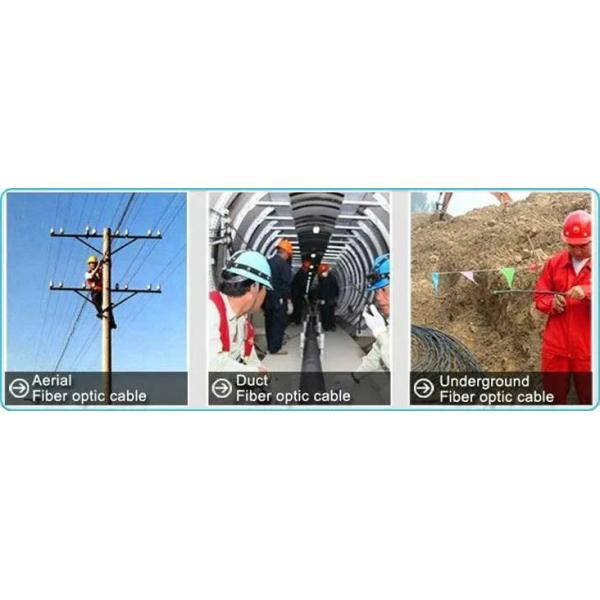

Application
Long haul / backbone application
Direct-burial, duct installation

6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath


Technical data


Technical data
Fiber Num.Outer diameter (mm)Weight (kg/km)Min.Bending radius(mm)Tension (N)Crash loading (N/100mm)
StaticDynamicShort termLong termShort termLong term
2-2412.618512.5 times O.D.25 times O.D.3000100030001000
26-3612.9195
38-6013.4200
62-7213.9230
74-9615.5275
98-12017320
122-14418.4365
146-21618.9385
218-24022.1495
242-28824.3580


Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Our Certificate & FAQ
REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate

6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath

6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath

Company Profile


As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

6 Core Outdoor Fiber Optic Cable Single Mode For Direct Buried with PE outer sheath
Contact with me for this Outdoor Double Armoured Optic Fiber Cable.
