Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC
Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC
Specifications
Brand Name :
OEM
Model Number :
TW-LC/UPC
Certification :
CE,ROHS,REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
5000PCS PER DAY
Packaging Details :
1PC/PE BAG
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Delivery Time :
15 Working Days
Polish :
UPC,APC
Fiber type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cord type :
Simplex ,Duplex
Cable jacket :
PVC,LSZH,OFNR,OFNP
Description

LC/UPC Fiber Optic Pigtail

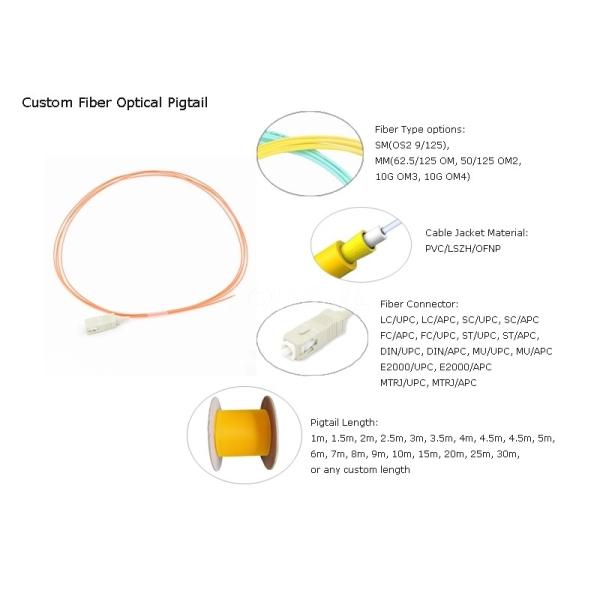

Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC

The LC pigtail fiber optic cable has connectors on one end for fast and easy connection to CATV, optical switches, or other telecom equipment. It's available in single mode and multimode versions, and features an LC connector with a zirconia ceramic ferrule, pre-polished PC profile, and convex spherical end.

Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPCGood In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC

By allowing for faster polishing, low back reflection, and optical loss, these end-face types ensure maximum repeatability.

Features

Low insertion loss and back reflection loss

Ferrule end surface is pre-domed

Excellent mechanical endurance

Good in repeatability

Good in exchange

Applications

Telecommunications

CATV, LAN, MAN, WAN, Test & Measurement

Military industry

Medical

Parameter

Parameter Unit Standard & Requirement
PC(SM) UPC(SM) APC(SM) PC(MM)
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥35
Mechanical Endurance (500T) dB ≤0.2
Exchangeability dB ≤0.2
Durability Time ＞500
Vibration dB ≤0.2
Operating Temperature ℃ ﹣40 ～﹢75
Storage Temperature ℃ ﹣45 ～﹢85
Cable Diameter mm Ф2.0mm± 2%

FIBER CHARACTERISTICS

ITEM CONSTRUCTION
FIBER TYPE Single mode: G652, Multimode: G651
MODE FIELD DIAMETER
@1310NM 9.0±0.5μm
CLADDING DIAMETER 125±1μm
CORE CONCENTRICITY 0.6μm
ERROR
≦
CLADDING 1.0%
NON-CIRCULARITY
≦
PRIMARY COATING
DIAMETER 250±15μm
COATING-CLADDING
CONCENTRICITY ERROR ≦12.5μm
FIBER CURL RADIUS 4m
≧
LSZH or better (OFNR-rated). The non-circular < 2%. Yellow color. printed cables
Casing information, type, length,
The bend R 3 cm
Installation: ≥ 200 N
Greatest tension Operating: ≥ 200 N
The force mashed 550 N/cm
