SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
Specifications
Brand Name :
OEM
Model Number :
TW-PT-SC/APC
Certification :
CE,ROHS,REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
5000PCS PER DAY
Packaging Details :
1PC/PE BAG
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
15 Working Days
Polish :
UPC,APC
Fiber type :
SM/MM
Cord type :
Simplex ,Duplex
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cable jacket :
PVC,LSZH,OFNR,OFNP
Description

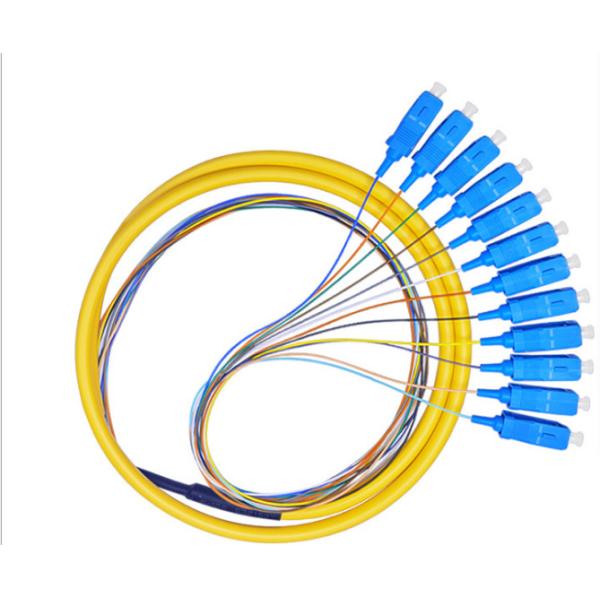

Optical Fiber Pigtail

SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM

Description

Optical Fiber Pigtail is a length of optical fiber with one end adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Pigtail assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM

This product features the following:

Low insertion loss.

High return loss.

Good repeatability.

Good exchangeability.

High temperature stability.

This product has the following applications:

Optical fiber communication systems.

Optic-fiber data communications.

Optic-fiber data communications.

Optic-fiber access networks.

LAN optic-fiber sensors.

Parameters

Mode Single mode Multi-mode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode:9/125-G652D
9/125-G657
Multi-mode: 50/125-OM2
62.5/125-OM1
50/125-OM3
Fiber Corning,China Fiber,other

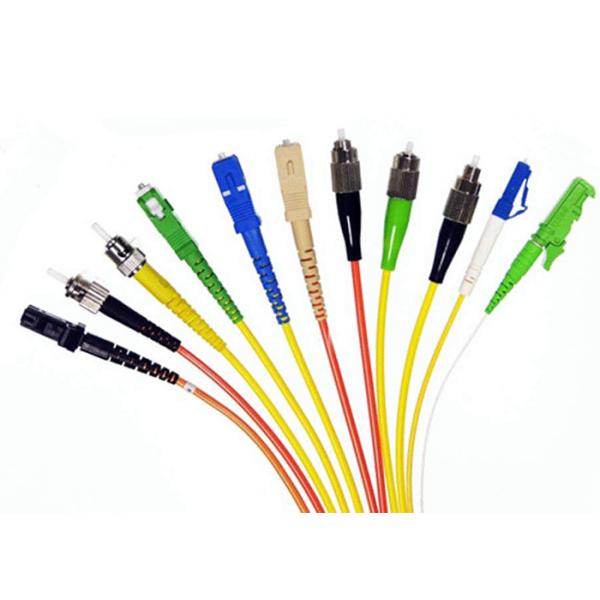

Connector SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket PVC,LSZH,OFNR,OFNP
length(M) 0.5m,1m,3M,5m,10m,20m,200m or other

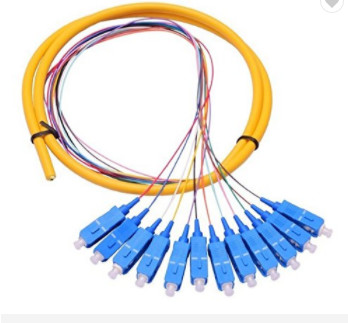

Appearance
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
Shipping & Payment
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
Certification & FAQ
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM

Company Profile

DONGGUAN TW-SCIE CO.,LTD.is a subsidiary of Tewang Group, established in 2002.After more than ten years of unremitting efforts, it has developed into a comprehensive high-tech optical fiber communication product development.production. sales and network engineering.The company's headquarters is located in OingXi Town.DongGuan City,a beautiful industrial town.It has two modern industrial production bases in DongGuan,GuangDong and DeYang,Sichuan, with an annual output of 20 million core kilometers of fiber optic cables.

As professional manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirement. So please feel free to contact with us for cooperation and excellent service.

SC / APC Single Mode Fiber Optic Pigtail Simplex / Duplex Cord Type OEM
