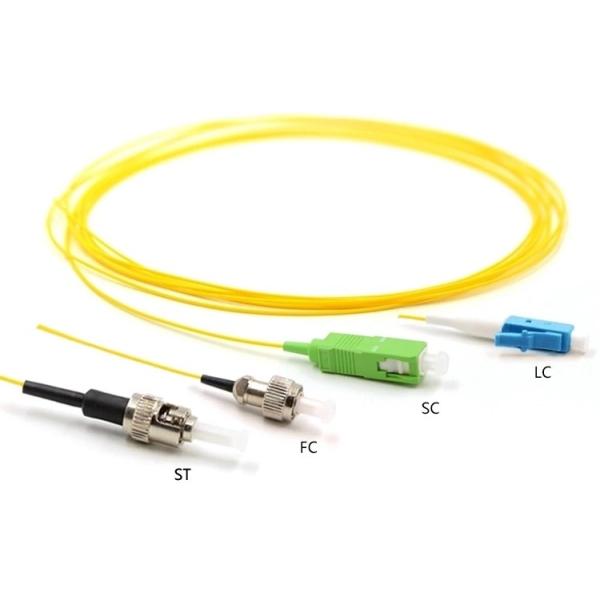

Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Specifications
Brand Name :
OEM
Model Number :
TW-PT-SC/APC
Certification :
CE,ROHS,REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
5000PCS PER DAY
Packaging Details :
1PC/PE BAG
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Delivery Time :
15 Working Days
Polish :
UPC,APC
Fiber type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cord type :
Simplex ,Duplex
Cable jacket :
PVC,LSZH,OFNR,OFNP
Description

Optical Fiber Pigtail

Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability

Description

An optical fiber pigtail is a length of fiber with a connector at one end, used for connecting the beam path. It can have various types of connectors and three types of polished fiber end-faces (PC, UPC, and APC). Our advanced techniques and equipment ensure high-quality mass production

This product has the following features:

Low insertion loss

High return loss

Good repeatability

Good exchangeability

High temperature stability

Applications include optical fiber communication systems

a.Optic-fiber data communications are involved in various applications.

b. Various applications can utilize optic-fiber data communications.

c. Different scenarios can benefit from optic-fiber access networks.

d. Multiple applications exist for LAN optic-fiber sensors.

Parameters

Mode Single mode Multi-mode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode:9/125-G652D
9/125-G657
Multi-mode: 50/125-OM2
62.5/125-OM1
50/125-OM3
Fiber Corning,China Fiber,other
Connector SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket PVC,LSZH,OFNR,OFNP
length(M) 0.5m,1m,3M,5m,10m,20m,200m or other
Appearance

Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature StabilityShipping & Payment & FAQ
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
