Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System
Specifications
Brand Name :
TW-SCIE or OEM
Model Number :
Patch Cord Indoor
Certification :
RoHS, UL, ISO9001,CE
Place of Origin :
China (Mainland) Guangdong Dongguan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
10000PCS/per day
Delivery Time :
10 work days
Packaging Details :
carton bo
Description

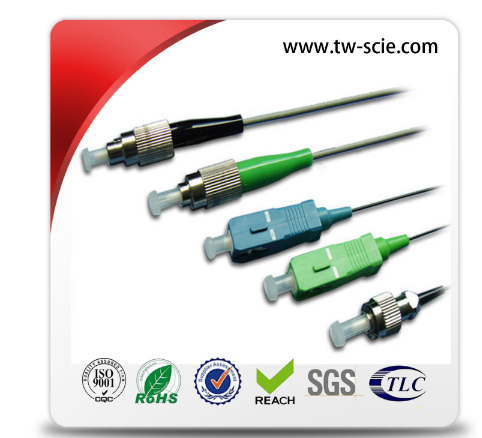

Armored FC, SC, LC, ST, MTRJ fiber optic patch cord for optical communication system

Quick Details:

Place of Origin: Guangdong, China (Mainland)

Brand Name: TW-SCIE or OEM

ConnectorS : SC,LC,FC,ST,E2000,MTRJ,MU,MPO etc...

Optical Fiber Type: G652D,G652D, 50/125 62.5/125 G657A1 G657A2

Ferrule end Face: UPC,APC

Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 0.25mm

Cable Length:1M, 3M, 10M, customized

Cable Jacket: PVC, LSZH

CORE: Simplex, Duplex

Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System

Descriptions:

Low insertion,high return loss, SC-SC-SM-DX fiber optic patch cord is a square,snap-in connectors latches with a simple push-pull motion and is keyed.

Application:

Usage: Testing equipment,FTTX+LAN,Optical fiber CATV,Optical communication system and

Telecommunications.

Specifications:

Insertion losses G652D
dB
 ≤ 0.2
Return losses G652D ≥ 60
Attenuation dB/Km 0,3
Connectors type SC/APC
Fiber Monomode (SM) G652
Outer sheath material LSZH PVC
Ø mm 3
color Orange
Available jumper lengths m 10

Cable First End Second End Fiber Type Pigtail Dim.(mm) Fan Out Length Jacket Type Length
1=1Fiber FU(A)=FC/UPC(APC) FU(A)=FC/UPC(APC) H=Hi 780 09=Φ0.9 05=50cm E=PE 05=50cm
2=2Fiber SU(A)=SC/UPC(APC) SU(A)=SC/UPC(APC) F=Flex 1060 2=Φ2 mm 10=100cm C=PVC 10=100cm
4=4Fiber D=G652D 3=Φ3mm H=LSZH
LU(A)=LC/UPC(APC) LU(A)=LC/UPC(APC) A=G657A 20=200cm A=Armored 20=200cm
R=Ribbon X=Customization B=G657B X=Customization
B=Bow
-type
OM1=62.5/125
OM2=50/125
OM3=50/125
OM4=50/125



Order Information:

Connector
Fiber Core
Cable Diameter
Fiber Type
Polishing
Cable Jacket
Cable Color
Fiber Length

LC
SC
FC
ST
D4
MU
DIN
SMA
MPO
MTRJ
E2000
Simplex
Duplex
0.9mm
2.0mm
3.0mm
SM:9/125um
MM:50/125um MM:62.5/125um
OM3
PC
UPC
APC
PVC
LSZH
Yellow
Orange
Aqua
others
1M
2M
3M
10M
20M
30M

Availabilities:

--Full specifications: FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, Etc.
--Simplex and Duplex assemblies available
--Singlemode and multimode available
--PC, UPC and APC polishing available
--Hybrid patch cords are available upon request
--Fan-out available (Ribbon type / bundle type)
--Pigtail available
--Loopback available
--Customized lengths upon request
--100% TESTED before shipping

Armored Fiber Optic Patch Cable Low Insertion For Optical Communication System

Factory Guarantee:

1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.

2. To develop advanced technology ,we have built a stable relationship with scientific research center for

fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products

enjoy great reputation for their advanced and precise quality worldwide.

Service Advantage:

1.To cater for different requirement from our customers, we offer various OEM service.

2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing

environment and requirements.

Quality Advantage:

1.We set up a strict quality guarantee system according to the requirments of international management

standardISO9001:2008.

2.We have not received complaints from customers on product quality right now.
