72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material
72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material
Specifications
Brand Name :
TW-SCIE
Model Number :
GYTS
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
one week
Packaging Details :
Customized
Outer sheath material :
PE
Outer Sheath Color :
Black
Loose tube material :
PBT or Jelly
Single Armour Material :
Corrugated aluminium tape
Operating Temperature :
-40 Degree ~ +60 Degree
Waterblocking Material :
Water Blocking Tape or Filling Compound
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
Messenger Material :
Steel Wires
installation methods :
Aerial &Duct
Application :
Communcation
Description

72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material

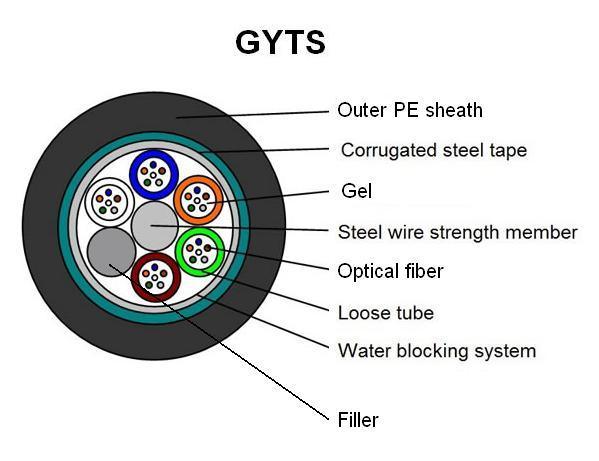

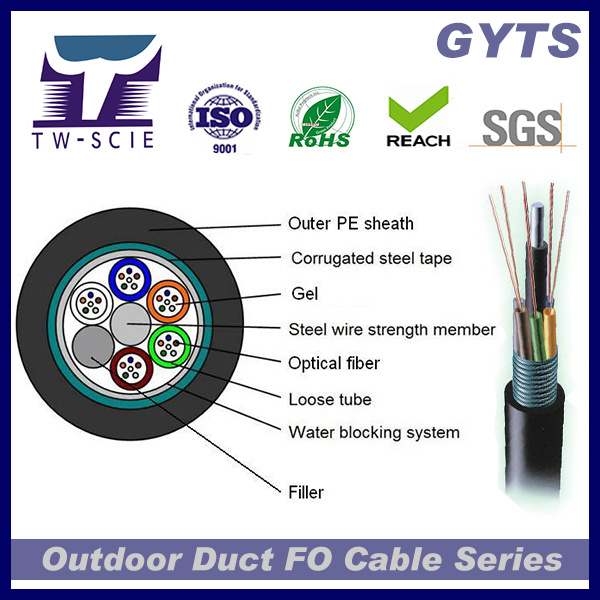

GYTS fiber optic cable is universal optical cable; it can be used in aerial, duct and direct-buried while GYTA can be used in aerial cable and duct cable not in direct-buried cable.The S in GYTS refers to steel strip which can sustain large pulling force, the A in GYTA refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission. Choose GYTS cable when tensile strength is needed.

Characteristics


1.Good mechanical and temperature performance.
2.Heigh strength loose tube that is hydrolysis resistand.
3.Specially tube filling compound ensure a critical protection of fiber.
4.Specially designed compact structure is good at preventing loose tubes from shrinking.
5.PE sheath protects cable form ultraviolet radiation.
6.Steel wire used as the central strength member.
7.100% cable filling core filling.
8.Loose tubes filling compound.
9.PSP enhancing mostiure-proof.


Appicable fieds

1.Aerial, Duct
2.Structure Characters
3.Metalic strengthen member(phosphated steel wire)

4.Long-distance communication, LAN

Specifications


Fiber Num.		 Outer diameter (mm) Weight (kg/km) Min. Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.8 95 10 times O. D. 20 times O. D. 1500 600 1000 300
32-36 10.3 115
38-60 10.7 115
62-72 11.3 140
74-96 12.9 175
98-120 14.4 210
122-144 15.8 245

72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material
72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material

72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material

72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material

Exhibition

72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material

Our certificates

72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material72 Core G652D Loose Tube Fiber Optic Cable GYTS PE Outer Sheath Material


Good Service


Over 20 years of factory experience
Over 8 years of foreign trade experience
Direct factory price
Professional one -to-one service
Perfect customer service
OEM is available
Various products range

IF ANY QUESTIONS, PLEASE FEEL FREE TO CONTACT US !
