Specifications
Brand Name :
TW
Model Number :
GYFTY Factory Price Fiber Optic Cable
Place of Origin :
GUANGDONG China.
MOQ :
5km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100km/day
Delivery Time :
Negotiable
Packaging Details :
customized
Certification :
ROHS REACH SGS ISO,ANATEL
Model No :
GYFTY Factory Price Fiber Optic Cable
Outer Sheath Material :
PE
Central Strength Member :
Non-Metallic
Filler :
Filling Compound
Fiber Count :
2-288 Core
Brand Name of Fiber :
Corning ,Yofc,Draka,Fujikura or as Your Requiremen
Waterblocking Material :
Water Blocking Tape or Filling Compound
Installation Style :
Aerial
Loose Tube Material :
PBT with Jerry
Description

GYFTY Factory Price Non-Metallic Aerial Fiber Optic Cable

This GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable are suitable for outdoor aerieal installation. Non-metallic structure with Amaid Yarn messager makes GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable reduce itself gravity.

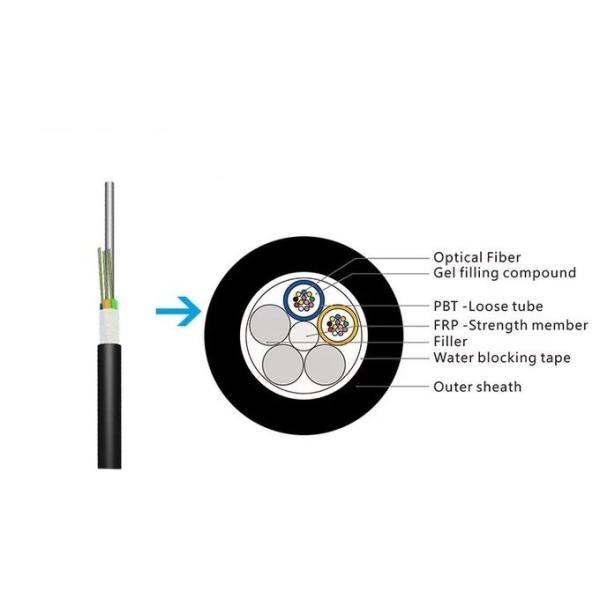

Structure characters


1.Non-metallic strengthen member
2.Reinforced with glass or aramid yarn
3.PE outer sheath
We can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.

Applicable Fields


1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.

Specifications

Cable Type GYFTY
Fiber Type G652D
Application Long-distance communication, LAN
Recommended installation methods Aerial
Environment Outdoor
Temperature Range -40 to 70℃

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber
Optical Characteristics
Mode field diameter (MFD)

1310nm

1550nm

9.2±0.4

10.4±0.8

µm

µm

Cut-off wavelength (λcc) ≤1260 nm
Attenuation coefficient

1310nm

1383nm

1550nm

<0.35

<0.35

<0.22

dB/km

dB/km

dB/km

Macro bending loss φ75mm, 100circles, at 1550nm ≤0.1 dB
Attenuation non-uniformity ≤0.05 dB
Dispersion coefficient

1288~1339nm

1271~1360nm

1550nm

≤3.5

≤5.3

18

Ps/(nm.km)

Ps/(nm.km)

Ps/(nm.km)

Zero dispersion wavelength 1300~1324 nm
Max zero dispersion slope ≤0.093 Ps/(nm2.km)
Group index of refraction (typical value)

1310nm

1550nm

1.466

1.467

Geometric characteristic
Cladding diameter 125.0±1.0 µm
Core/cladding concentricity error ≤0.8 µm
Cladding non-circularity 1.0 %
Coating diameter 245.0±10 µm
Cladding/coating concentricity error ≤12.0 µm
Coating non-circularity ≤8 %
Diameter of colored coating 250.0±15 µm
Mechanical characteristic
Curling (radius) ≥4 m
Proof stress >0.69 Gpa
Coating strip force

Average value

Peak value

1.0-5.0

1.3-8.9

N

N

Dynamic stress corrosion susceptibility parameter (nd value) ≥20

Item Description
Tensile strength(N) Long-term 600
Short-term 1500
Crush(N/100mm) Long-term 300
Short-term 1000
Min. Bend Radius Static 10D
Dynamic 20D
Temperature Range(℃) Operation -40℃ - +70℃
Installation -10℃ - +50℃
Storage -40℃ - +70℃

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler


Our Company

Dongguan TW-SCIE Co., Ltd. is a high-tech enterprise specializing in the research and development, production, processing, sales and network engineering of optical fiber communication products, and has independent import and export rights. The company has a group of loyal, dedicated, wise, strong professional and technical talents, committed to tracking the world's advanced optical communication products development and application. The company R & D, production, management of the main products are optical fiber, optical cable, optical transceiver, optical MODEM and so on. Products are widely used in communication, electric power, railway, military and other related departments, exported to France, India, Singapore, Malaysia and other countries.

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler
Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler

OEM Non Metallic Aerial Fiber Optic Cable 2 - 288 Core Fiber Count With Filling Compound Filler


Our Quality & Service

DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Please feel free to contact us for cooperation and excellent service !
