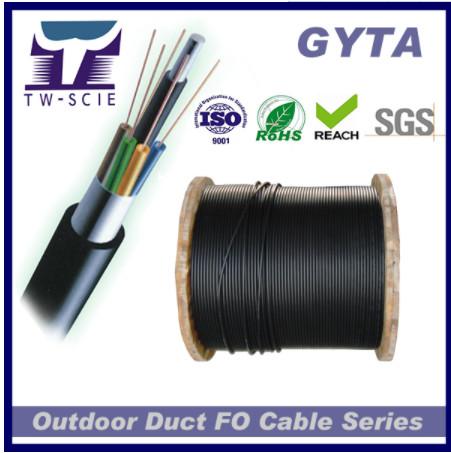

Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
Specifications
Brand Name :
TW-SCIE
Model Number :
GYTA
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
one week
Packaging Details :
Customize
Outer sheath material :
PE
Outer Sheath Color :
Black
Metallic Strengthen Member :
Steel wire
Loose tube material :
PBT or Jelly
Single Armour Material :
Corrugated aluminium tape
Operating Temperature :
-40 Degree ~ +70 Degree
Waterblocking Material :
Water Blocking Tape or Filling Compound
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
Messenger Material :
Steel Wires
installation methods :
Aerial &Duct
Description

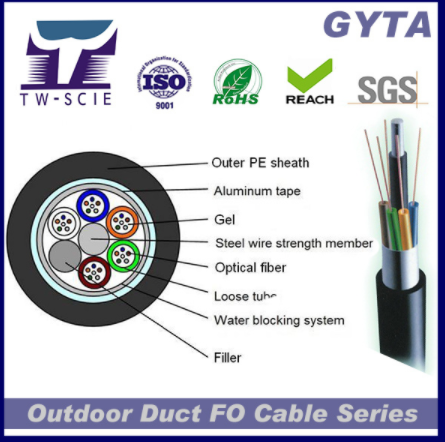

Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable

Applications

  • Aerial / Duct
  • Connecting communication equipments
  • Multi-cores wiring system in data center

Characteristics

1.Corrugated steel(aluminum) tape offers high tension and crush resistance;

2.Special gel in the tube offers ceitical protection for the fibers;

3.With steel wire central strength member;

4.Anti-UV PE jacket;

5.Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span.


Technical data

Fiber Num. Outer diameter (mm) Weight (kg/km) Min. Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.6 90 10 times O. D. 20 times O. D. 1500 600 1000 300
32-36 10.0 97
38-60 10.4 112
62-72 11.0 130
74-96 12.5 165
98-120 14.0 190
122-144 16.5 245

Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use

Aluminum GYTA 24 Core Loose Tube Stranded Fiber Optic Cable For Duct Use
