Specifications
Brand Name :
TW-SCIE
Model Number :
GYXTW
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
1 KM
Price :
usd0.15/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 km per day
Delivery Time :
15 Working Days
Packaging Details :
Drum
Fiber Count :
2-36 Core
Fiber Type :
G652D, single mode, OM3
Loose tube material :
PBT or Jelly
Outer sheath material :
MDPE / HDPE
Outer Sheath Color :
Black
Single Armour Material :
Corrugated aluminium tape
Waterblocking Material :
Water Blocking Tape or Filling Compound
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
installation methods :
Duct & Burial
Operating Temperature :
-40 Degree ~ +60 Degree
Description

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction

12/24 Core Single/Multi Mold Outdoor Armoured Aerial Fiber Optic/Optical Cable (GYXTW)

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction

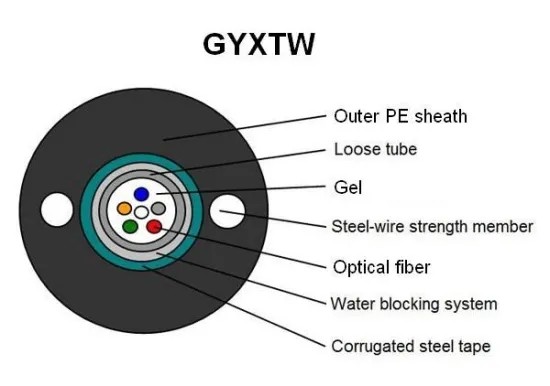

Structure

The central loose tube fiber optic cable is a structure in which the optical fiber is located in the center of the optical cable and is filled with compound and PE jacket outside, reinforced by double steel wires.

Feature

1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties

Specification

Description

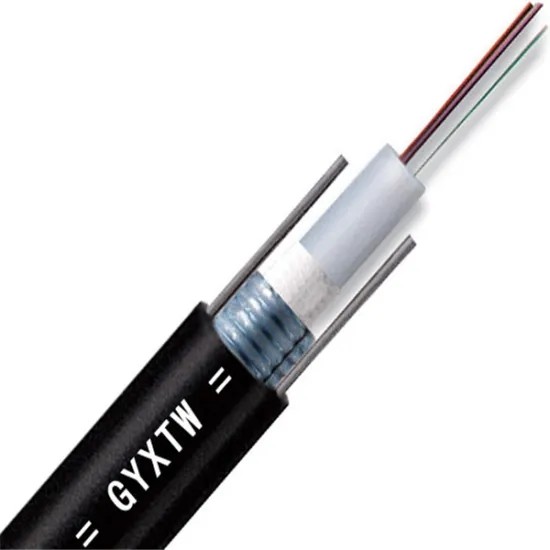

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
Standards
GYXTW cable complies with Standard YD/T 769-2003.


Optical Characteristics
G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)		 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm
Technical Parameters
Cable Type Fiber Count Cable Diameter
mm		 Cable Weight kg/km Tensile Strength
Long/Short Term N		 Crush Resistance
Long/Short Term
N/100mm		 Bending Radius
Static
/Dynamic
mm
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D
Storage/Operating Temperature : -40ºC to + 70ºC


Optic Cable Technical data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-12 8.9 90 10 times O.D. 20 times O.D. 1500 600 1000 300
14-24 10.2 110

Application

Aerial & Duct
