Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using
Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using
Specifications
Brand Name :
TW-SCIE
Model Number :
GYXTW
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
15 Working Days
Packaging Details :
Customize
Single Armour Material :
Corrugated aluminium tape
Loose tube material :
PBT or Jelly
Outer sheath material :
MDPE / HDPE
Outer Sheath Color :
Black
Waterblocking Material :
Water Blocking Tape or Filling Compound
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
installation methods :
Duct & Burial
Operating Temperature :
-40 Degree ~ +60 Degree
Description

Telcom Fiber Optic Cable Sm 2-12 F Unitube Outdoor

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

Description

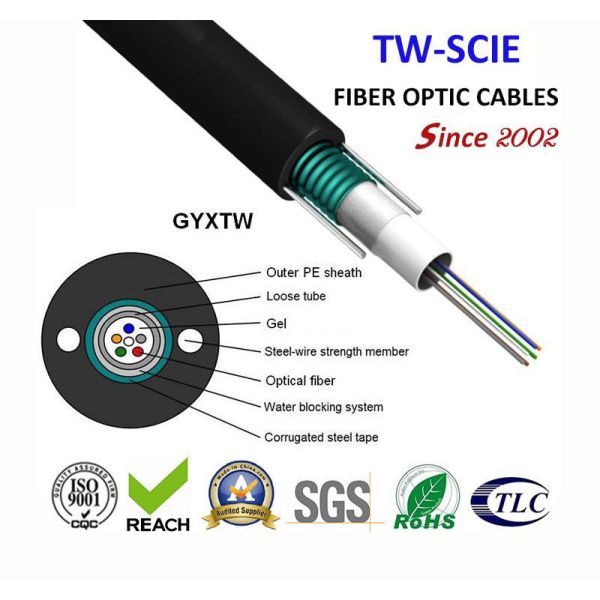

Loose tube with 250μm fibers, filled with water-resistant compound and wrapped with PSP layer longitudinally. Water-blocking material applied between PSP and tube for compactness. Cable has parallel steel wires and PE sheath.

Characteristics

Cable features: good mechanical and temperature performance, hydrolysis-resistant loose tube with high strength, critical fiber protection, crush resistance, flexibility, moisture-proofing PSP, parallel steel wires for strength, small diameter and lightweight for easy installation, and long delivery lengths.

Standards

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)		 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm


Optical Characteristics
G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)		 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm
Technical Parameters
Cable Type Fiber Count Cable Diameter
mm		 Cable Weight kg/km Tensile Strength
Long/Short Term N		 Crush Resistance
Long/Short Term
N/100mm		 Bending Radius
Static
/Dynamic
mm
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D
Storage/Operating Temperature : -40ºC to + 70ºC



Optic Cable Technical data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-12 8.9 90 10 times O.D. 20 times O.D. 1500 600 1000 300
14-24 10.2 110

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

Packing & Shipping & Payment

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor UsingTelecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

Company Information

Dong Guan Tw-Scie Co., Ltd. is a Chinese high-tech enterprise group that specializes in communication manufacturing, supply, and engineering services, with complete fiber and cable specifications. We have a dedicated team, collaborate with scientific research academies, and export products widely. Contact us now for competitive optic cable.

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using

Telecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor UsingTelecommunication cable of Armored Fiber Optic Cable Sm 2-12 core for Outdoor Using
