800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring
800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring
800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring
800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring
800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring
800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring
Specifications
Brand Name :
TW-SCIE
Model Number :
GYTC8S
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
15 Working Days
Packaging Details :
Customize
Structure Section :
"8" Figure Cross Section
Outer sheath material :
MDPE / HDPE
Outer Sheath Color :
Black
Loose tube material :
PBT or Jelly
Single Armour Material :
Corrugated aluminium tape
Waterblocking Material :
Water Blocking Tape or Filling Compound
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
installation methods :
Self-Support Aerial
Operating Temperature :
-40 Degree ~ +60 Degree
Description

Aerial Fiber Cable of 80m Span Self-Supporting and Amored Sheath

800m Span Aerial Fiber Optic Cable Self Supporting And Amored Sheath Single mode for the Indoor shaft/building wiring

Application


☆.Adopted to outdoor distribution.

☆.Suitable for aerial duct and buried method.
☆.Long distance and local area network communication.

Characteristics

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.
☆.Fiber count: 2-24 cores.

Fiber Allocation Scheme

Fiber number Tube number Fiber per tube Fiber type
2 1 2 F/Tube SM G652D MM 50/125 MM 62.5/125
4 1 4 F/Tube
6 1 6 F/Tube
8 1 8 F/Tube
12 1 12 F/Tube
24 1 24 F/ Tube

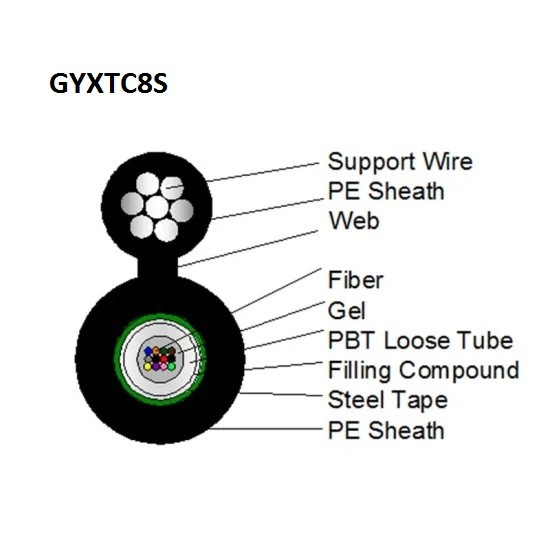

Cable Construction Details

Items Description
Number of fiber 2 cores to 24cores
Connector strength member Material Galvanized steel wire
diameter 1.2 mm
Loose tube material PBT
diameter Ф2.0-2.8
Cable filling material Cable filling compound
Outer sheath material HDPE
diameter 1.7±0.2mm

Cable Mechanical Characteristic

Items Cable diameter Weight
2 cores to 24 cores 3.2*7.2 mm 70 kg/km
Installation Temperature range -15--+60
Operation and transport temperature -40-+70
Rec.daily max working tension 1500 N
Max. Allowable working tension 600 N
Min Bending Radius(mm) operation 10D mm
installation 20D mm
Extra load 0.5%-0.7%
Ice 5mm
Wind speed 35m/s

Fiber Characteristic

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
condition nm 1310/1550 850/1300 850/1300
attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Dispersion 1310nm Ps/(nm*km) ≥-3.4 ≤3.4 ..... .....
1550nm Ps/(nm*km) ≤18 ..... .....
1625nm Ps/(nm*km) ≤22
Bandwidth 850nm MHZ. KM ..... >=400 >=160
1300nm MHZ. KM ..... >=800 >=500
Zero dispersion wavelength nm >=1302,≤1322 ..... .....
Zero dispersion slope Ps(nm2*km) ≤0.091 ..... .....
PMD Maximum Individual Fiber Ps√km ≤0.2 ..... .....
PMD Design Link Value Ps√km ≤0.08 ..... .....
Fibre cutoff wavelength λc nm >=1180,≤1330 ..... .....
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 ..... .....
1550nm um 10.4±0.8 ..... .....
Numerical Aperture(NA) ...... 0.200±0.015 0.275±0.015
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.10 ≤0.10
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.10 ≤0.10
Difference backscatter coefficient dB/km ≤0.03 ≤0.08 ≤0.10
Attenuation uniformity dB/km ≤0.01 ....... .......
Core diameter um ...... 50±1.0 62.5±2.5
Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5
Curl(radius) um ≤4 ..... .....
Tag: self-supporting cable, figure 8, 24 core.

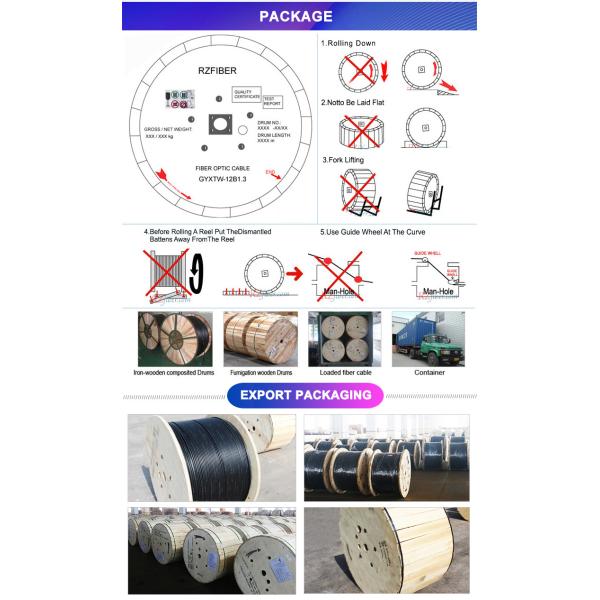

Packing & Shipping & Payment
