Specifications
Brand Name :
TW or OEM
Model Number :
Indoor FTTH
Certification :
SGS ROHS REACH ISO
Place of Origin :
DONG GUAN CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000KM/mouth
Delivery Time :
5working days
Packaging Details :
Wooden Drum
Brand Name of Fiber :
Corning ,Yofc,Draka, Fujikura...as Requirement
Color of Loose Tube :
Blue, Orange, Green, Brown
Strength Member :
Steel or FRP
Jacket Color :
Black, White
Installation Style :
Indoor & Outdoor Self-Support Drop Cable
Cable Dimension :
3.1*2.0mm
Cable Weight :
8.2kg/Km
Description

FRP Glass Fiber Optic FTTH Drop Wire Cable with G657A Sm 2 Fibers GJXFH Black

Characteristics

1. Good mechanical and environmental characteristics
2. Two parallel steel wire or FRP as strength member to protect the fiber and provide adequate tension and pressure
3. The mechanical characteristics meet the requirements of relevant standard
4. Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
5. Meets various requirements of market and clients


Applications


1.Indoor Wiring System

2.FTTH,Terminal System

3.Indoor Shaft,Building Wiring


Technical Date


ITEMS		 UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100

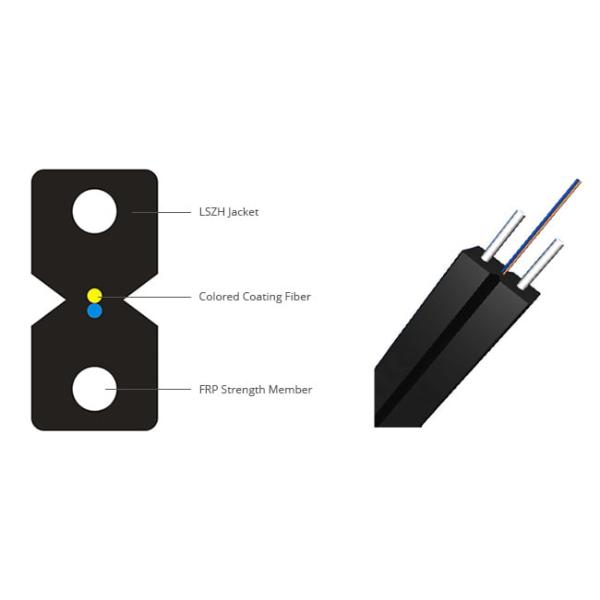

Structure

FRP Glass Flex Durable Indoor Drop Cable GJXFH Black Big Capacity Data Transmission

FRP Glass Flex Durable Indoor Drop Cable GJXFH Black Big Capacity Data Transmission


FRP Glass Flex Durable Indoor Drop Cable GJXFH Black Big Capacity Data Transmission

FRP Glass Flex Durable Indoor Drop Cable GJXFH Black Big Capacity Data Transmission

FRP Glass Flex Durable Indoor Drop Cable GJXFH Black Big Capacity Data Transmission

FRP Glass Flex Durable Indoor Drop Cable GJXFH Black Big Capacity Data Transmission

Our Quality & Service


DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

ANY QUESTIONS, PLS FEEL FREE TO CONTACT US !
