1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor
1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor
1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor
1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor
Specifications
Brand Name :
TW-SCIE
Model Number :
GJXH
Certification :
CE,RoHS, REACH
Place of Origin :
China(Mainland)
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
2000KM per day
Packaging Details :
drum+carton
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
15 Working Days
Sheath Material :
LSZH
Messenger Material :
Steel Wire/FRP
Jacket Color :
Black, White
Optical Fiber :
G.657A
Diameter :
2.0mm*3.0mm
Transport Package :
Drum+Carton
Fiber Count :
1-4
Cable weight :
9
Description

Indoor Drop Cable GJXH

Fiber Optic Drop Cable SM G657A1 with LSZH Black Jacket

Made with Outer Sheath, Optical Fiber and Strength Member (steel/FRP)

Application Scenario

Indoor Partial Wiring

FTTH fiber optic to the home, user terminal

vertical shaft, building wiring

Technical Characteristics

Durable bend-resistant optical fiber provides greater bandwidth and enhances the characteristics of network transmission.

The butterfly-shaped cross-section design is protected by an LSZH or PVC outer sheath

Durable bend-resistant optical fiber provides greater bandwidth and enhances the characteristics of network transmission

The optical fiber is easy to strip, lightweight, small in size, and has a unique groove design that facilitates installation and maintenance of connections.


General Specifications

Cable Type FTTH(Drop Cable)
Fiber Type SM G657A1/ SM G657A2
Application FTTH, LAN
Recommended installation methods Aerial
Environment Indoor
Temperature Range -40℃ to 70℃


Fiber Specifications

Fiber style Unit

SM
G652D

SM
G657A1

SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm ≧1180,≤1330 ≧1180,≤1330 ≧1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4


Standard Color Identification of Fiber

No. 1 2 3 4
Color Blue Orange Green Brown


Cable Design

Item Description
Model No GJXH/GJFXH
1. Fiber count 1 Core , 2 Core, 4 Core
2. Cable Diameter 3.0*2.0mm
3. Cable Weight 11.5KGS/9.5KGS
4. Strength member
-Material Steel/FRP
-Diameter 0.45mm
5.Outer Sheath
-Material LSZH (Black/white)
6. Sheath marking
-Type of marking Laser printing

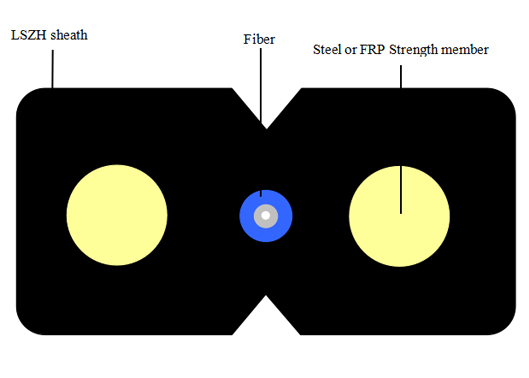

Cable Structure


1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor


Cable Performance

Items Description
Installation Temperature range -20--+60℃
Operation and transport temperature -40-+70℃
Min Bending Radius(mm) Long term 10D
short term 20D
Allowable Tensile Strength(N) Long term 60
short term 100
Crush Load (N/100mm) Long term 500
short term 1000



Items Description
Cable length 1KM or 2KM per reel
Package material drum+carton
Package size 1KM 31.5*21*32.5cm
2KM 34.5*28*35cm

Packing & Shipping

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor

Company Profile

1-24 Core SM G657A1 armored Fiber Drop Cable FTTH network LSZH Black Jacket for Indoor

FAQ

Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG province, China.

Q2: How long has your company been doing this?
A2: We have been producing fiber optical cable for more than 20 years, and we also produce optical fiber and related tools.

Q3:How about the cable's quality?
A4: Our factory is approved by the ISO 9001 quality management system and has received STARF, CE, CPR, and TLC certifications. We have a series of equipment and instruments that ensure the reliable quality of our products.

Q4: Can you produce a cable that meets our requirements
A6: Of course, we can supply different types of products according to your requirements, and we offer reasonable prices.

Q5: What is your MOQ for accepting OEM orders?
A7:Yes,we warmly welcome your OEM order.To satisfy our customer,We can accept small orders and process them as sample orders.
