4 Core Multimode Multi Strand Fiber Optic Cable Tight Buffer Fiber Design
4 Core Multimode Multi Strand Fiber Optic Cable Tight Buffer Fiber Design
Specifications
Brand Name :
TW
Model Number :
Multi-Purpose Distribution Cable
Certification :
SGS ROHS REACH ISO
Place of Origin :
DONG GUAN CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, , Western Union, MoneyGram
Supply Ability :
1000KM/WEEK
Delivery Time :
5 WORKING DAYS
Packaging Details :
Wooden Drum
Description

1-48 Cores Multi-Purpose Distribution Cable 4 Core Multimode Fiber Optic Cable

4 Core Multimode Multi Strand Fiber Optic Cable Tight Buffer Fiber Design


Offer CE,ROHS,FCC,ISO9001 ,TLC certificates
1,2,4,6,8,12 cores optional
Lenght can be negotiation
Both OEM and ODM are availables

1. RoHS compliant fibre cable
2. prompt delivery
3. Building fiber cabling
4. Lan optical cables

Multi Cores G652D G657A OM2 OM3 Indoor Optic Fiber Cable Spec.

Fiber count Cable Diameter (mm) Cable Weight (kg/km)

Tensile (N)
Long/ Short term

Crush (N/100mm)
Long/ Short term

Min. Bend Radius (mm)
Dynamic/ Static
4 5.0 19.0 130/440 200/1000

20D/10D
6 5.2 23.0 130/440 200/1000
8 5.5 26.0 130/440 200/1000
12 6.5 36.5 200/660 200/1000
16 7.5 44.5 200/660 200/1000
24 8.2 54.5 200/660 200/1000

Note: 1. The min. bend radius (static) is 5D when G657 fiber is used.
2. Range of temperature: -40~+70°C
3. D is outer diameter of the round cable
4. Tight-buffered fiber is 0.9mm


Order Optional Information
Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.
Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.
Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm, A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.657, E1.1- EasyBad Plus G.657, etc.
Cable Dimension: the nominal cable dimension, or other constomerized dimension;
Fiber Count: total number of fibers in the cable
MOQ: 1km~2km, other customerized

Discription

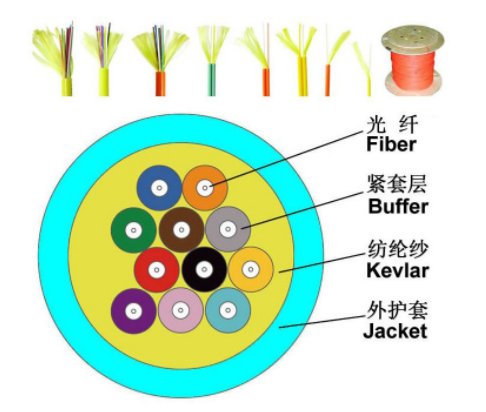

12 diameter 900μm or 600μm flame-retardant tight buffer fibers + a layer of aramid yarn + PVC jacket.
Features
1. Tight buffer fiber ease of stripping.
2. The jacket anti-corrosion, anti-water, anti-alltraviolet ratardation, flame retardant and harmless to environment etc;
3. Excellent flame retardart jacke and anti-torsion;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Excellent performance of anti-torsion;
6. All dielectric structure protect it from electromagnetic influence;

Application
1. Multi optical fiber jumper, patch cord, pigtail cable;
2. Indoor any purpose cable distribution
3. Backbone building distribution cabling.
4. Installation: wall, interlayer, pipe, trough, duct.

Why you choose us ?

1. Factory, OEM/ODM available
2. Steady quantities supply, Strict quality control
3. Excellent OWIRE or your own brand box/roller design and package
4. Stirictly conform to ISO, Rohs CE certificates
5. Long time experience at domestic and export market

Certification & FAQ

4 Core Multimode Multi Strand Fiber Optic Cable Tight Buffer Fiber Design

4 Core Multimode Multi Strand Fiber Optic Cable Tight Buffer Fiber Design
