Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member
Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member
Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member
Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member
Specifications
Brand Name :
TW
Model Number :
GYTA
Certification :
SGS ROHS REACH ISO
Place of Origin :
DONG GUAN CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000km/week
Delivery Time :
5 working days
Packaging Details :
customized
Fiber Count :
2-288 Core
Brand Name of Fiber :
Corning ,Yofc,Draka,Fujikura or as Your Requiremen
Outer Sheath Material :
PE
Outer Sheath Color :
Black
Metallic Strengthen Member :
Steel Wire
Filler :
Filling Compound
Single Armour Material :
Corrugated Aluminium Tape
Waterblocking Material :
Water Blocking Tape or Filling Compound
Description

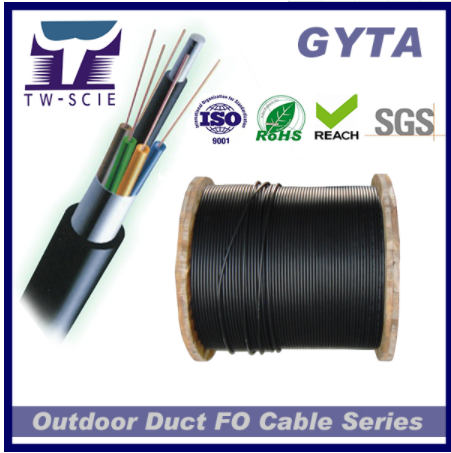

GYTA Loose Tube Stranded Optical Fiber Cable with Steel Type Armored


Appicable fieds


1.Long-distance communication, LAN
2.Moisture-proof and rodent-proof

Characteristics

1.Corrugated aluminum tape offers high tension and crush resistance.

2.Special gel in the tube offers ceitical protection for fibers

3.With steel wire central strength member

4.Anti-UV PE jacket

5. Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span.

Technical data

Fiber Num. Outer diameter (mm) Weight (kg/km) Min. Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.8 95 10 times O. D. 20 times O. D. 1500 600 1000 300
32-36 10.3 115
38-60 10.7 115
62-72 11.3 140
74-96 12.9 175
98-120 14.4 210
122-144 15.8 245
146-216 16.3 260
218-240 19.5 345
242-288 21.7 415

GYTA Aluminium Tape Armored G652D Fiber Optic Cable for Duct or Aerial Application
Description and Standards :
The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with
a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable
with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are
stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene
Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it
from water ingress. Then, the cable is completed with a PE sheath.
GYTA fiber cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Characteristics:
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Specially designed compact structure is good at preventing loose tubes from shrinking;
PE sheath protects cable from ultraviolet radiation;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)APL moisture barrier.

Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member

Packing & Shipping

Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member

Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member

Company Profile

Dong Guan TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

optic cable, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member

Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member

Loose Tube Stranded Armored 12core Fiber Optic Cable Steel Wire Metallic Strengthen Member

Why Choose TW-SCIE

1. More than 20 years of professional optical cable manufacturing experience.

2. Own factory, product price is more competitive

3. Provide professional technical guidance.

4. Advanced production and testing equipment

5. A complete range of products to meet customers' needs for different products

6. OEM service can be provided for you.

Dear Friend,

Thanks for your visiting, we Dongguan TW-SCIE Co.,LTD supply CATV& FTTx products, including Outdoor & indoor 6 Core Optical Fiber Cable, Installation tools,Test and inspection equipments, accessories etc...

Yours sincerely,

Any interesting item or have any confusion,please do not hesitate to contact us!
