24/36/48 Core FRP outdoor Loose Tube Stranding Fiber Optical Cable GYFTY
This GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable are suitable for outdoor aerieal installation. Non-metallic structure with Amaid Yarn messager makes GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable reduce itself gravity.

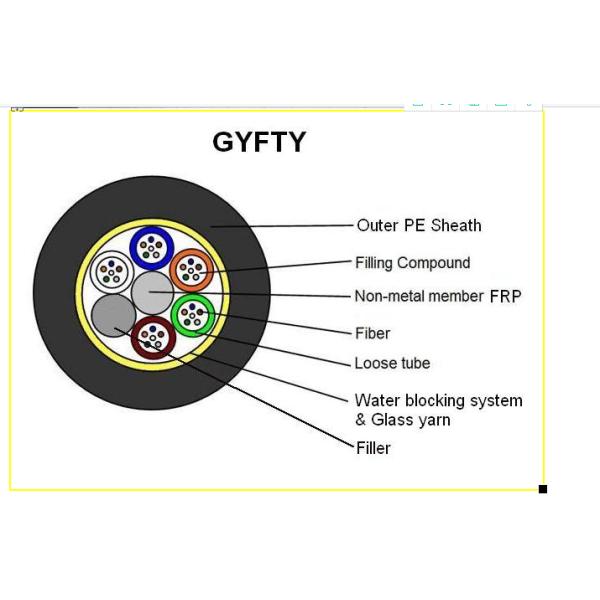

Structure characters
1.Non-metallic strengthen member
2.Reinforced with glass or aramid yarn
3.PE outer sheath
Properties
1.Non-metallic structure providing excellent anti-electromagnetism
2.Anti-thunder and anti-static performances.
Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical data
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
Static | Dynamic | Short term | Long term | Short term | Long term | |||
2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
38-60 | 10.2 | 110 | ||||||
62-72 | 11.7 | 115 | ||||||
74-96 | 13.4 | 150 | ||||||
98-120 | 15.0 | 190 | ||||||
122-144 | 16.6 | 230 | ||||||
146-216 | 16.9 | 240 | ||||||
218-240 | 19.3 | 305 | ||||||
242-288 | 21.5 | 375 |
Packing & Shipping
Company Profile
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
optic cable, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
Our Certificate
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
Dear Customers,
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Your Sincerely
WE LOOK FORWARD TO HEARING FROM YOU !
