Specifications
Brand Name :
TW-SCIE
Model Number :
ADSS
Certification :
CE, ROHS, REACH, SGS, ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
USD0.55-1.6/m
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
15 working days

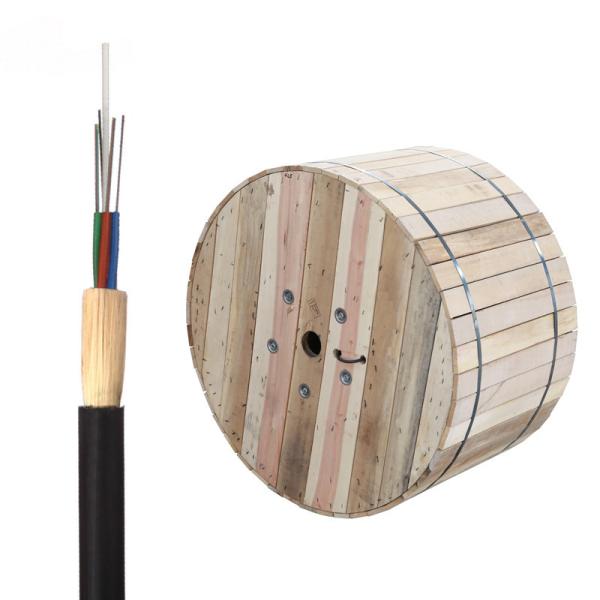

Packaging Details :
wooden reel
Supply Ability :
200 km per day
Fiber :
G652D, G657A1, G657A2
Fiber Count :
72 fibers
Central Strength Member :
FRP
Strength member :
FRP,Kevlar Aramid Yarn
Jacket :
PE or AT
Span :
100m, 150m, 200m, 250m, 300m,350m, 400m,450m,500m, etc,
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Operating temperature :
from -40 ℃ to +70 ℃
Description

ADSS All-dielectric Self Support Outdoor Aerial Fiber Optic Cable 72 core

Description

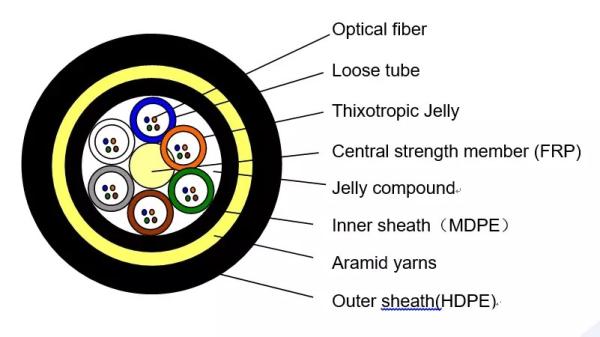

The ADSS cable consists of fibers that are 250μm in diameter and are positioned in a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound and stranded around a non-metallic central strength member made of FRP. This creates a compact and circular cable core, which is then filled with a filling compound and covered with a thin inner sheath made of PE. A layer of aramid yarns is then applied over the inner sheath as a strength member, and finally, the cable is completed with an outer sheath made of either PE or AT for anti-tracking.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Features

The aerial fiber optic cable is all-dielectric and self-supporting, with no metal in its structure.

It has a large number of fiber cores, is lightweight, and can be installed alongside power lines, saving resources.

The cable uses high tensile strength aramid material to withstand tension and prevent damage.

It has a small thermal expansion, meaning the cable's arc is minimally affected by temperature changes.

The cable has a double layer of aramid yarn for strength, making it suitable for harsh environments like high-altitude salt lakes or lines with spans greater than 800 meters.

The cable has a three-layer sheath with PE/AT as the outer jacket.

Specifications

Cable fiber count / 2~30 32~60 62~72
Structure / 1+5 1+5 1+6
Fiber style / G.652D
Central strength member material mm FRP
Diameter (average) 1.5 1.5 2.1
Loose Tube Material mm PBT
Diameter (average) 1.8 2.1 2.1
Thickness(average) 0.32 0.35 0.35
Max fiber/loose tube 6 12 12
Tubes color Full color identification
Fiber excess length % 0.7~0.8
Water resistance Material / Cable jelly
Inner sehath material mm MDPE
Inner sheath 0.9mm
Non-metallic strengthen components Material / Aramid Yarn
Outer sheath material mm MDPE
Outer sheath 1.8mm
Cable diameter(average) mm 10.9 11.5 12.1
Cable weight (Approximate) kg/km 95 110 120
Cable Sectional area mm2 93.31 103.87 114.99
Attenuation coefficient(Max) 1310nm dB/km 0.35
1550nm 0.21
Rated Tensile Strength(RTS) kn 6
Max allowed tension( MAT) kn 2.5
Annual average operating tension (EDS) kn 3.2
Young's modulus kn/mm2 7.8
Coefficient of thermal expansion 10-6/℃ 9
Crush resistance Long term N/100mm 1100
Short term 2200
Permission Bent Radius static mm 15 of OD
dynamic 20 of OD
Temperature When laying ℃ -20~+60
Storage and transportation -40~+70
runing -40~+70
Scope of application Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm
Cable Marks

Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year

(Or at customer’s request)

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
