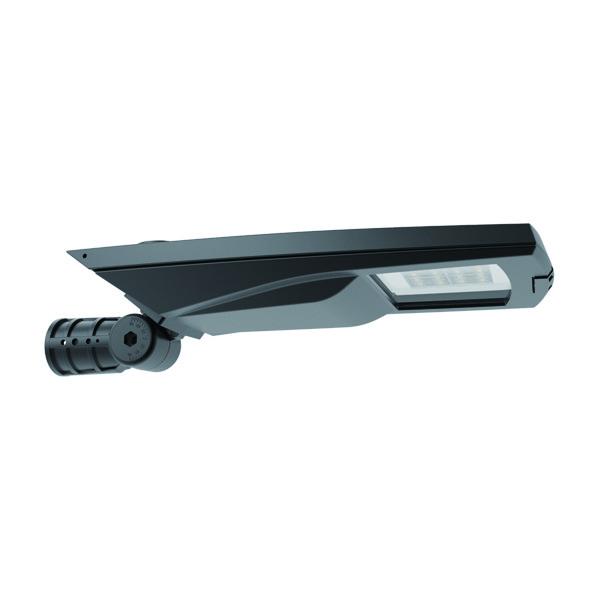

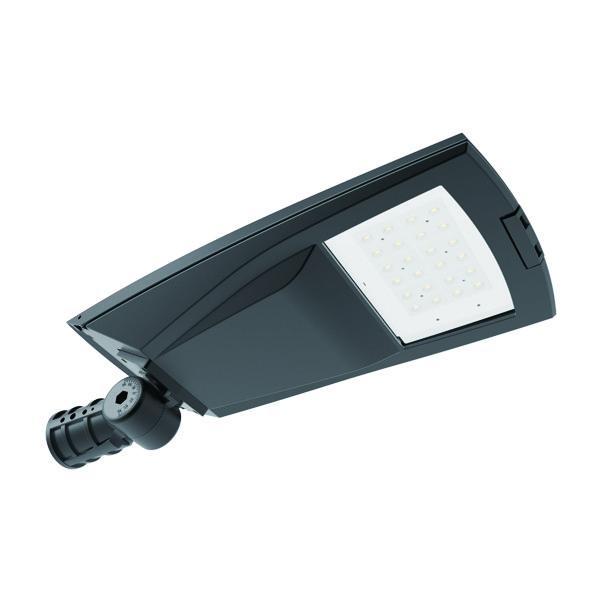

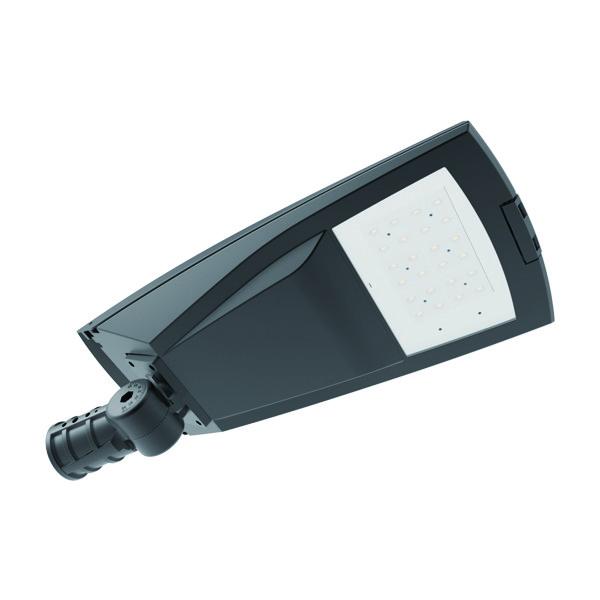

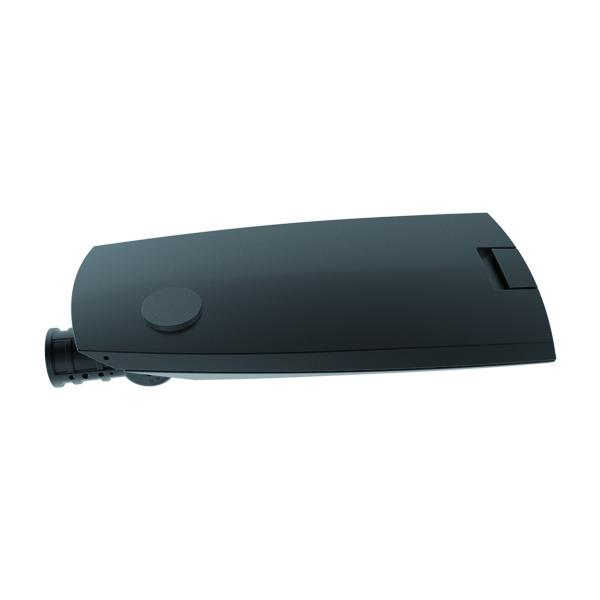

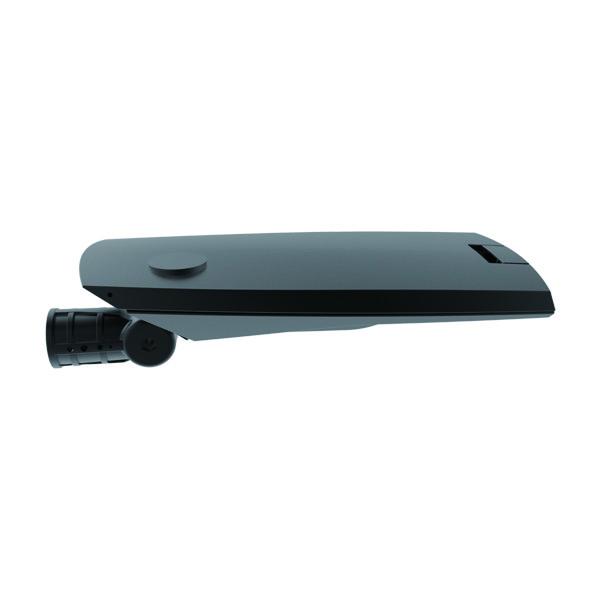

140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
Specifications
Brand Name :
DALITE
Model Number :
LLDL-7960
Certification :
CE
Place of Origin :
CHANGZHOU CITY CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000sets/month
Delivery Time :
2-6 weeks
Packaging Details :
Form + Carton
Rated Power :
35-150W
Efficiency @5050 :
>140LM/W
CCT :
3000-6500K
IP rating :
IP66
Impact Resistance :
IK09
Service Life :
>50000H
Description

High Efficiency,Luminous efficacy > 140 Im/W Max, Anti-Impact IK09, LLDL-7960,Outdoor LED Street Lights
Code: LLDL-7960

The most comprehensive & economical LED lighting solution
Key advantages

  • Luminaire efficiency up to 140lm/Wattage Max
  • Simple and modern design,self-clean design body
  • Two sizes available: small and large
  • Protector in extra-clear tempered glass for high-performance
  • Free tooling latch lock system
  • Two fixing system:Post top or Side-entry mounting
Characteristics
Code LLDL-7960A LLDL-7960B
Size(D*W*Hmm) 620*280*110 736.5*280*110
Rated Power 35/50/70W 100/120/150W
Beam Angle T2/T3/T4/90°*90°
Efficiency @3030 >130LM/W
Efficiency @5050 >140LM/W
Luminous Flux@3030 4550/6500/9100 13000/15600/19500
Luminous Flux@5050 4900/7000/9800 14000/16800/21000
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.9
Protection Index IP66
Impact Resistance IK09
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class I / II
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H

Dimensions
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
Photometric Distributions
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
Installation Diagram
1 Die-casting clip open system free tooling
2 Body and Dome in High Pressure Die-casting Aluminum, any RAL colour available
3 Electrical Safety Switch
4 Philips Input SPD(10KV)
5 5mm thickness ultra-thin glass
6 Silicon Gasket , IP66
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
Application example
140LM/W 6500K LED Road Lamp , 120 Watt IP66 LED Street Light
