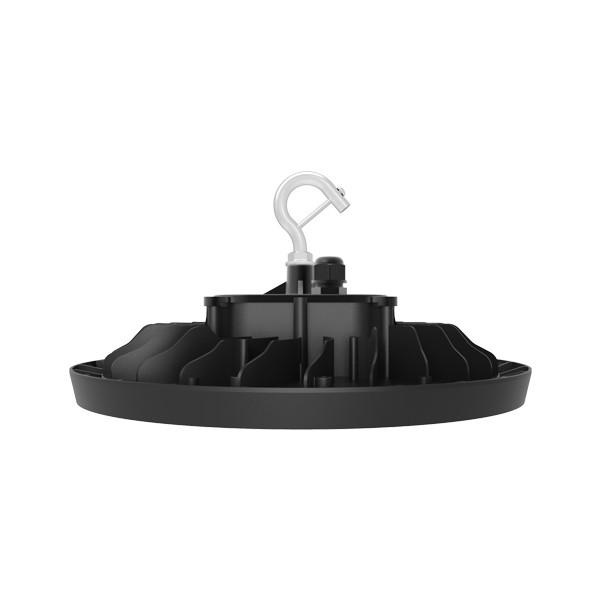

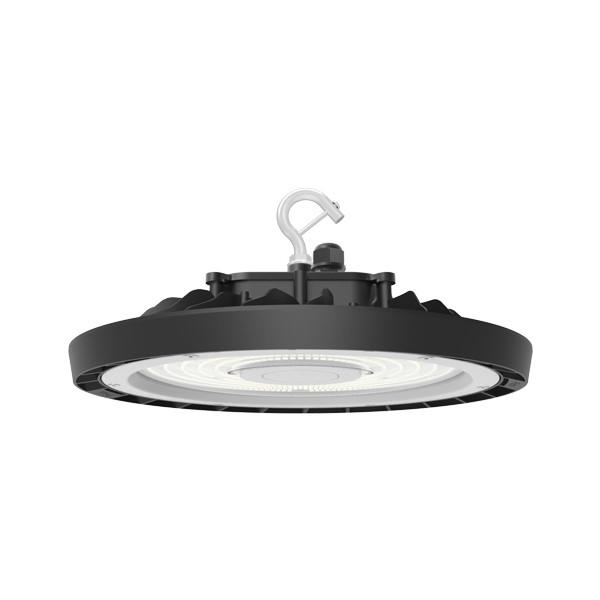

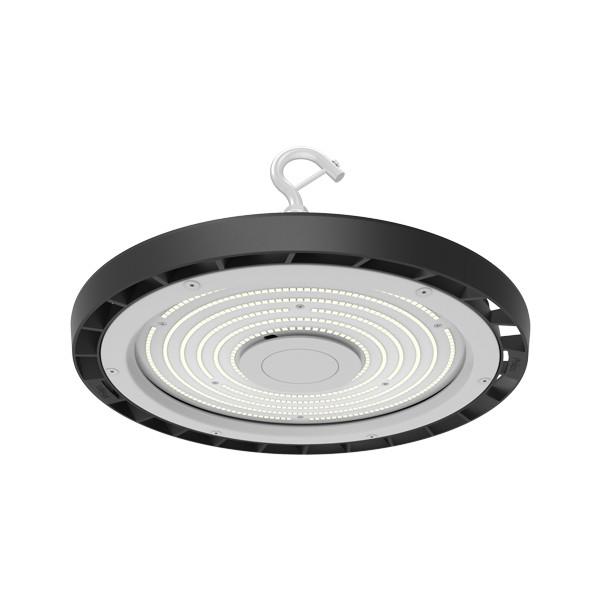

Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Specifications
Brand Name :
DALITE
Model Number :
GCL-564
Certification :
CE, ETL
Place of Origin :
CHANGZHOU CITY CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000sets/month
Delivery Time :
2-6 weeks
Packaging Details :
Form + Carton
Material :
Die-cast aluminum
Color :
Grey/Dark grey/Black or as requirement
CRI :
Ra>70
IP rating :
IP65
Impact Resistance :
IK08
Working Temperature :
-40-50℃
Working Humidity :
10%-95%
Description

130NM/W Efficiency Excellent Heat Dissipation IP65 Protection Index IK08 Impact Resistance UFO LED Shop Lights

European and American design style.Adopt aerodynamic design, take heat away quickly, keep low temperature for heat sink and LED chip for long lifespan and high light efficiency.
Key advantages
  • Die-cast aluminum housing and PC lens
  • Textured architectural dark bronze powder coat finish
  • Other colour available under request
  • Silicon Gasket , IP65
  • Adjustable lighting color temperature on option
Characteristics
Code GCL-564A GCL-564B GCL-564C
Size(D*W*Hmm) 246*246*167 330*330*167 380*380*167
Rated Power 100W/125W 200W 240W
Beam Angle 110°
Efficiency@2835 >130LM/W
Luminous Flux >13000/16250LM >26000LM >31200LM
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.9
Protection Index IP65
Impact Resistance IK08
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class I
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H
Dimensions
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Photometric Distributions
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Mounting Accessories On Option
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Accessories for GCL-563/564
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
Application example
Heat Dissipation 130NM/W 277V UFO LED Shop Lights 110 Degree
