Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Specifications
Brand Name :
DALITE
Model Number :
LTYL-8203 and LLDL-8203
Certification :
CE
Place of Origin :
CHANGZHOU CITY CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000sets/month
Delivery Time :
2-6 weeks
Packaging Details :
Form + Carton
Material :
Die-cast aluminum
CRI :
Ra>70
IP rating :
IP65
Impact Resistance :
IK09
Working Temperature :
-40-50℃
Working Humidity :
10%-95%
Description

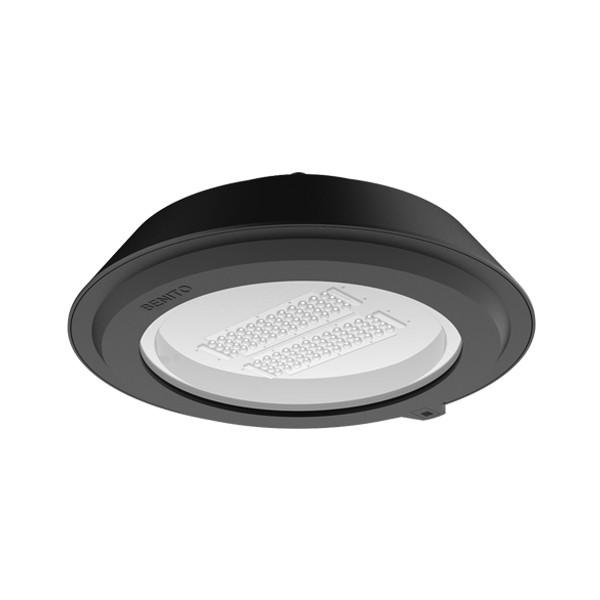

Round light Glass over, Die-cast Aluminum, IP65 Protect, Anti-impact IK09 LTYL-8203 Outdoor Led Landscape Lights

LTYL-8203 and LLDL-8203

Key advantages
  • Excellent thermal management
  • IP65 protection degree
  • IK09 impact resistance

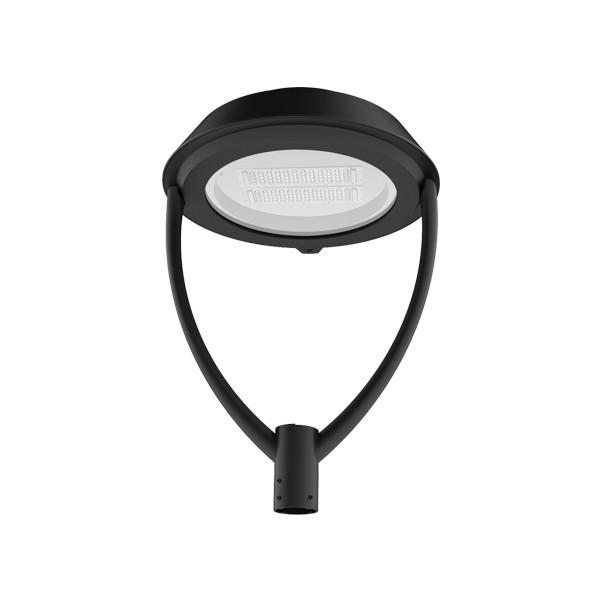

  • Post top and suspended optional
  • 5mm thickness tempered glass
  • 0-90 degree adjustable system for side entry
  • Round elegant design incorporating the advantages of LED technology
  • Heavy and durable die-casting alu. body
  • Low energy consumption
  • Tool-less entry for easy installation and maintenance
  • Available in side-entry and suspended version

Characteristics
Code LTYL-8203-Single arm LTYL-8203-Arms LLDL-8203-Side-entry LLDL-8203-Suspended
Size(D*W*Hmm) 623.5*623.5*837 562*562*844.5 763*562*208 562*562*253
Rated Power 30W/60W/90W
Beam Angle T2/T3/T4/T5
Efficiency @4000K 120LM/W
Luminous Flux 3600/7200/10800LM 3600/7200/10800LM 3600/7200/10800/14400LM 3600/7200/10800/14400LM
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.95
Protection Index IP65
Impact Resistance IK09
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class I
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H
Dimensions
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Photometric Distributions
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
Application example
Round Anti Impact IK09 60W LED Landscape Lighting T3 120LM/W 7200LM
