Specifications
Brand Name :
DALITE
Model Number :
LTYL-909E
Certification :
UL, DLC, CE, CB, ENEC
Place of Origin :
CHANGZHOU CITY CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000sets/month
Delivery Time :
2-6 weeks
Packaging Details :
Form + Carton
Material :
Die-cast aluminum
Efficiency @4000K :
140LM/W
CRI :
Ra>70
IP rating :
IP65
Impact Resistance :
IK08
Working Temperature :
-40-50℃
Working Humidity :
10%-95%
Description

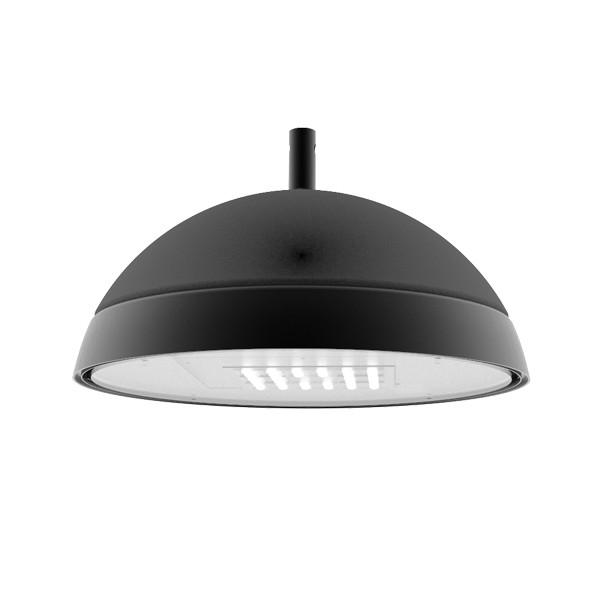

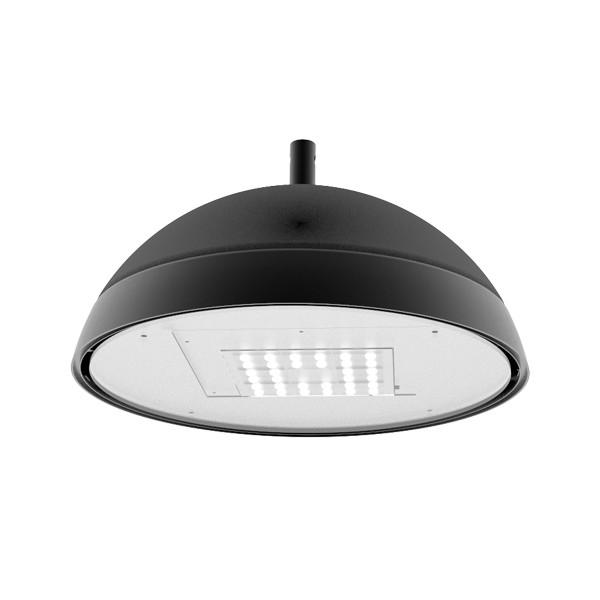

Heavy-Duty Die-Cast Aluminum Housing Corrosin Resistance Excellent Thermal Management Outdoor Led Landscape Lights

Model: LTYL-909E

Key advantages
  • Patent number:ZL 2018 3 0024939.0
  • Clean, smooth design blending harmoniously into outdoor environments.
  • Heavy-duty die-cast aluminum housing.
  • UV stabilized polyester powder coating finish for durability and corrosion resistance.
  • Precision engineered individual lenses made of optical grade polycarbonate for maximum light intensity, with tempered glass cover to protert the optics.
  • Excellent thermal management
  • IP65 protection degree
  • Full series certification: UL, DLC, CE, CB, ENEC
  • Luminous efficiency up to 140LM/W.
Characteristics
Code LTYL-909E
Size(D*W*Hmm) 480*480*211
Rated Power 30/60/100/150W
Beam Angle 90°*90°/T2-S/T3-M/T4
Efficiency @4000K 140LM/W
Luminous Flux 4200/8400/14000/21000LM
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.9
Protection Index IP65
Impact Resistance IK08
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H
Dimensions
Heavy Duty 3000K 4200LM Outdoor LED Landscape Lights Corrosin Resistance 120V
Photometric Distributions
Heavy Duty 3000K 4200LM Outdoor LED Landscape Lights Corrosin Resistance 120V
Application example
Heavy Duty 3000K 4200LM Outdoor LED Landscape Lights Corrosin Resistance 120V
