Specifications
Brand Name :
DALITE
Model Number :
ZTGL-1100D and ZTGL-1100E
Certification :
CE, UL
Place of Origin :
CHANGZHOU CITY CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000sets/month
Delivery Time :
2-6 weeks
Packaging Details :
Form + Carton
Rated Power :
70-300W
Efficiency @3030 :
>140LM/W
CCT :
3000-6500K
IP rating :
IP65
Impact Resistance :
IK08
Electrical Class :
Class I
Description

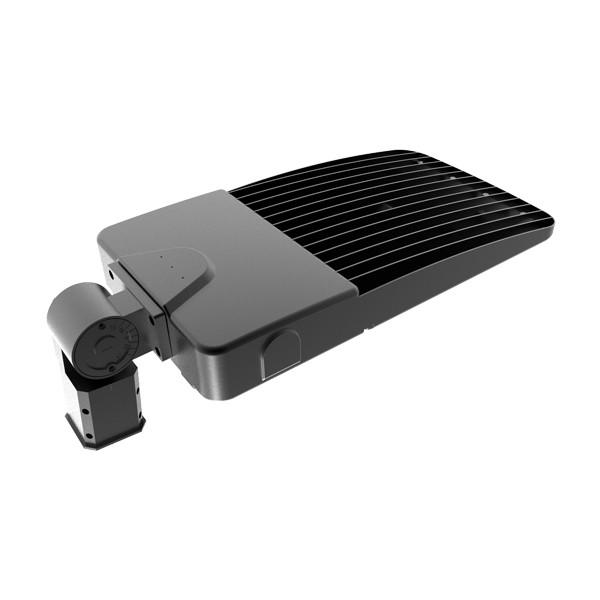

Economical LED lighting,IP65 protection,Impact Resistence IK08, ZTGL-1100, Outdoor LED Street Lights

Code: ZTGL-1100D and ZTGL-1100E

The most comprehensive & economical LED lighting solution
Key advantages

  • Super economical led street light
  • Excellent thermal management
  • IP65 protection degree
  • PC lens protector ,various light distribution of lens on options
  • IK08
Characteristics
Code ZTGL-1100D-S ZTGL-1100E-S
Size(D*W*Hmm) 524*250*83 727*280*83
Rated Power 70/100/150W 200/240/300W
Beam Angle T2/T3/T4
Efficiency @3030 >140LM/W
Efficiency @5050 >150LM/W
Luminous Flux@3030 9800/14000/21000LM 28000/33600/42000LM
Luminous Flux@5050 10500/15000/22500LM 30000/36000/45000LM
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50/60Hz
Power Factor >0.9
Protection Index IP65
Impact Resistance IK08
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class I
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H
Dimensions
Economical 70W 6500K 9800LM IP65 Outdoor LED Street Lights 524x250x83mm
Photometric Distributions
Economical 70W 6500K 9800LM IP65 Outdoor LED Street Lights 524x250x83mm
Mounting Accessories On Option
Economical 70W 6500K 9800LM IP65 Outdoor LED Street Lights 524x250x83mm
Application example
Economical 70W 6500K 9800LM IP65 Outdoor LED Street Lights 524x250x83mm
