High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
Specifications
Brand Name :
BISPARK
Model Number :
ARES
Certification :
CE RoHS SAA UL DLC CB TUV NOM
Place of Origin :
Guangdong,China
MOQ :
negotiation
Price :
245.8-736.8 USD
Payment Terms :
T/T, Western Union, PayPal, D/P, D/A
Supply Ability :
20000 PCS per Month
Delivery Time :
3-15 work days
Packaging Details :
1PC/Carton
Material :
Die-casting Aluminum
Power :
400W/500W/600W/800W/1000W/1200W
Input Voltage :
90-305V/480V AC
Chip :
Lumileds SMD5050
Driver :
Meanwell/Inventronics
Beam Angle :
15°/30°/60°/90°/140x70°
Operating Temp. :
-30-45 ℃
Lumen :
60000-180000LM
Luminous Efficiency :
150LM/W
IP Rate :
IP67
Life Span :
61,000 Hours
Warranty :
7 Years
Color :
Black/Red
Others :
OEM/ODM
Description
High lumen outdoor smd waterproof ip67 1000W LED sports fields Light

  1. Inventronics / Meanwell Driver
  2. 10KV/20KV SPD lightning protector
  3. Lumileds / Cree 5050 LED Chips
  4. Lumen Efficacy:150LM/W
  5. Beam Angle:15° / 30° / 60° / 90° / 140×70°
  6. (400W 500W 600W 800W 1000W 1200W )
  7. 7 years warranty
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver

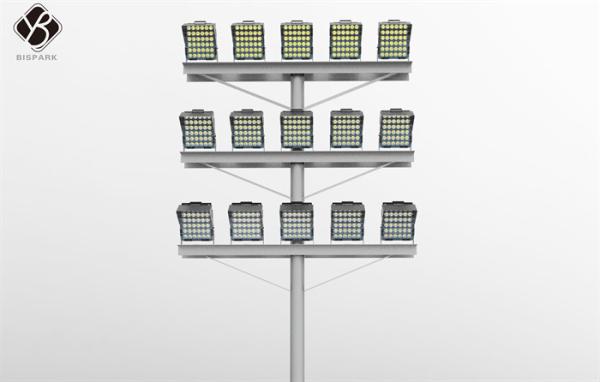

ARES Series outdoor LED sports lighting Fixtures are designed to replace 1000W to 2500W Metal Halide and HPS lights.
Supply perfect high efficiency and UGR below 22, widely used for highways, outdoor/ indoor sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), warehouse, airport, seaport, etc. If any projects, please do not hesitate to inquiry me. Dialux simulation or IES files all can be provided. Thanks.

Item Number NL-ARES-HM400 ARES-HM500 ARES-HM600 ARES-HM800 ARES-HM1000 ARES-HM1200
Wattage 400W 500W 600W 800W 1000W 1200W
Lumen Output 60000lm 75000lm 90000lm 120000lm 150000lm 180000lm
LED Quantity 200PCS 240pcs 280pcs 480pcs 480pcs 560pcs
Size(MM) L435*W347*H211 489*347*211 542*347*211 439*708*211 493*708*211 546*708*211
LED Chip Lumileds 5050
Luminous Efficacy 150LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 15° / 30° / 60° / 90° / 140×70°
IP Rating IP67
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Die-casting Aluminum housing+PC lens
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
1. Light source/ LED Driver of LED Sports light

  • Lumileds chips SMD 5050 Professional optical design,
  • Full beam angle :A variety of light distribution meets different lighting applications. It can be get luminosity to wherever you want
  • Mewell or Inventronics driver
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics DriverHigh Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
2. R&D Patented of LED Sports light

  • Professional thermal design with Excellent Heat dissipation
  • The heat sink is made of AL6063-T5 aluminum material with excellent heat dissipation and corrosion resistance.
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
  • IK08 Tempered glass cover,IP67 Waterproof Structure

High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver

3. Humanized Design of LED Sports light
Humanized design makes users more convenient to install.
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
4. Installation of LED Sports light
High Lumen SMD Waterproof LED Football Stadium Lights Meanwell / Inventronics Driver
1. Open the package and fix the bracket
2. Fix the luminaire at the bracket
3. Fix the Anti-collision net
4. Install the Anti-glare shade
5. Make sure the wiring section is insulated before installation
6. Adjust the beam angle(Finish the installation)
