High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
Specifications
Brand Name :
BISPARK
Model Number :
PRIMUS
Certification :
CE RoHS SAA UL DLC CB TUV NOM
Place of Origin :
Guangdong,China
MOQ :
negotiation
Price :
641.8-658.8 USD
Payment Terms :
T/T, Western Union, D/A, D/P PayPal, MoneyGram
Supply Ability :
20000 PCS per Month
Delivery Time :
7-9 days for 1000pcs
Packaging Details :
1PC/Carton
Material :
Die-casting Aluminum
Power :
960W
Input Voltage :
90-305V/480V AC
Chip :
Lumileds SMD5050
Driver :
Meanwell/Inventronics
Beam Angle :
20˚/40˚/60˚/90˚/140*100˚
Operating Temp. :
-30-45 ℃
CCT :
2700-6500K
Luminous Efficiency :
160LM/W
IP Rate :
IP65
Life Span :
61,000 Hours
Warranty :
7 Years
Apllication :
Sports Venues, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports,etc
Others :
OEM/ODM
Description

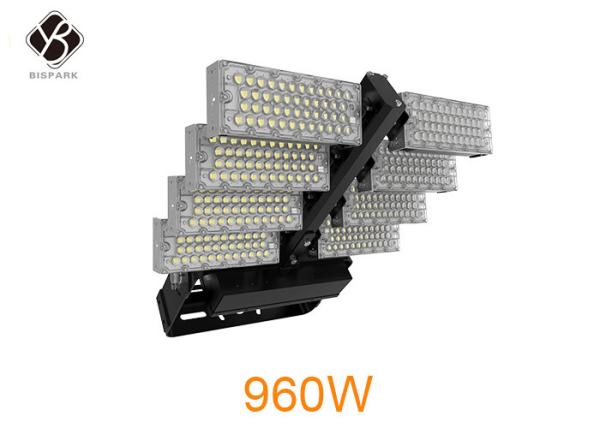

High Brightness IP66 LED Sports Field Lighting 960W LED Stadium Floodlights

Product Features & Benefits:

• IP65 rated LED floodlighting

• Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.

• Rotatable modules offering maximum customization

• Heavy duty stirrup mounting bracket

• Multiple optics available

• With illumination equivalent to 1200 watt and 1500W metal halide fixtures,you will enjoy an "instant-on, flicker-free" cold start, and industry-leading High brightness LED chip,Luminous flux up to 155-160Lm/W.

• Protractor scale for easier aiming

High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
160LM/W High Power PRIMUS Series Floodlight with 600W/720W/800W/960W/1000W/1200W/1440W,which produces up to 223,200 lumens, it is designed specifically for large area and sports applications, sports and area floodlights and LED high mast luminaires can reduce operational and maintenance costs.
Item Number NL-PRIMUS-HM720 PRIMUS-HM960 PRIMUS-HM1200 PRIMUS-HM1440
Wattage 720W 960W 1200W 1440W
Lumen Output 115200lm 153600lm 192000lm 230400lm
LED Quantity 276PCS 368pcs 460pcs 552pcs
Size(MM) L694*W268*H723 694*268*855 694*268*987 694*268*1119
LED Chip Lumileds 5050
Luminous Efficacy 160LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 20° / 40° / 60° / 90° / 140×100°
IP Rating IP65
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Extruded Aluminum housing+PC lens

1. Different Beam Angle & Power
LUMILES SMD 5050 LED CHIPS flood light Huniform illumination,long life,good stable.
20° / 40° / 60° / 90° / 140×100°
720W 960W 1200W 1440W For your option
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
2. Waterproof IP65
High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
3. Features
Adjustable:
1. Rotatable module
2. Replaceable optical lens
3. Protractor scale for easier aiming
4. Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5. Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.
4. Simple installation with convenient adjustability.
Rotatable modules outdoor led flood lights

Bracket :Thicken bracket, adjustable different angle.

High Brightness IP66 Outdoor LED Stadium Lights Meanwell / Inventronics Driver
5. Application
Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.
