Specifications
Brand Name :
BISPARK
Model Number :
GAEA-A
Certification :
CE RoHS SAA UL DLC CB TUV NOM
Place of Origin :
Guangdong,China
MOQ :
negotiation
Price :
210.5-226.5 USD
Payment Terms :
T/T, Western Union, D/A, D/P PayPal, MoneyGram
Supply Ability :
20000 PCS per Month
Delivery Time :
7-9 days for 1000pcs
Packaging Details :
1PC/Carton
Material :
Extruded Aluminum
Power :
480W
Input Voltage :
90-305V/480V AC
Chip :
Lumileds SMD5050
Driver :
Meanwell/Inventronics
Operating Temp. :
-30-45 ℃
CCT :
2700-6500K
Luminous Efficiency :
165LM/W
IP Rate :
IP65
Life Span :
61,000 Hours
Warranty :
7 Years
Others :
OEM/ODM
Description

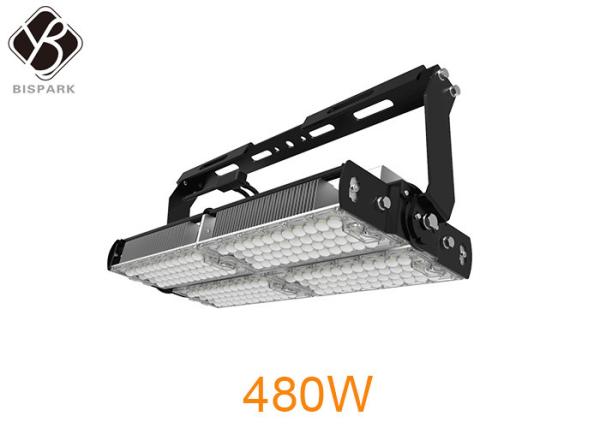

500W 480W High Power LED High Mast Light LED Stadium Light Meanwell / Inventronics Driver, Lumileds Driver

Product Features & Benefits:
  1. IP65 rated LED floodlighting
  2. Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
  3. Rotatable modules offering maximum customization
  4. Heavy duty stirrup mounting bracket
  5. Multiple optics available
  6. Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.

High Power 500W 480W LED High Mast Light Meanwell / Inventronics Driver

GAEA series LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights, it can reduce operational and maintenance costs. Available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.

Item Number NL-GAEA-HM240 GAEA-HM320 GAEA-HM480 GAEA-HM720 GAEA-HM960

GAEA-HM1200/

GAEA-HM1440
Wattage 240W 320W 480W 720W 960W 1200/1440W
Lumen Output 38400lm 51200lm 76800lm 115200lm 153600lm 192000/230400lm
LED Quantity 96PCS 144pcs 192pcs 288pcs 384pcs 480/576pcs
Size(MM) L356*W341.9*H117.6 356*473.9*117.6 650*335.4*117.6 650*467.4*117.6 650*599.4*117.6

667*596.9*133.1/

867*596.9*133.1
LED Chip Lumileds 5050
Luminous Efficacy 160LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 20° / 40° / 60° / 90° / 140×70°
IP Rating IP65
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Extruded Aluminum housing+PC lens

High Power 500W 480W LED High Mast Light Meanwell / Inventronics Driver

1. Light source/ LED Driver of LED High Mast Stadium Light

High Power 500W 480W LED High Mast Light Meanwell / Inventronics Driver

2. Rotatable module of LED High Mast Stadium Light

Adjustable:
  • Rotatable module
  • Replaceable optical lens
  • Protractor scale for easier aiming
  • Lengthened heavy duty mounting bracket allowing for 360 degree rotation
  • Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

High Power 500W 480W LED High Mast Light Meanwell / Inventronics Driver

3. IP Rating of LED High Mast Stadium Light
  • Anti-dust design,able to be with flushable cleaning
  • Waterproof IP65:
  • Can't be immersed into the water

High Power 500W 480W LED High Mast Light Meanwell / Inventronics Driver

4. Easy Installation of LED High Mast Stadium Light

High Power 500W 480W LED High Mast Light Meanwell / Inventronics DriverHigh Power 500W 480W LED High Mast Light Meanwell / Inventronics Driver

5. Application of LED High Mast Stadium Light
  • LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.
  • The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.
