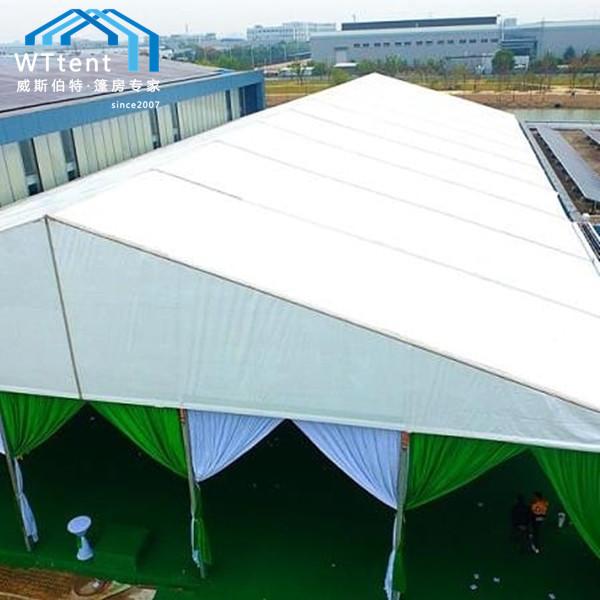

Custom Sporting Event Tents 20x80m size with Large Capacity Full Sides
Overview:
Outdoor Sporting Tents are ideal for providing shelter and protection from the sun, rain or wind for your team. Help your team stand out by customizing your tent with your logo or by creating a unique design! Add-ons to complement your custom tent such as walls and rail skirts are also available.
Features:
1). No pole inside, 100% space is available;
2). Combination of a party tent and high peak tent,or a combination of the party and the half multi-side tent,elegant form
3). 100% waterproof, proof, anti-fire, UV-protection, can be environmentally controlled in any climate;
4). Wind load: max. 100km/h,Snow load: 75kg/sqm
Material:
1). Frame: Hard pressed extruded aluminium 6061 /T6 (15HW) which can last over 15 to 20 years. Easy to be assembled and dismantled, movable.
2). Fabric: High quality double PVC-coated polyester textile, 850g/sqm,100% waterproof, flame retardant to DIN4102 B1, M2(European standard ), UV resistant, tear resistant, self-cleaning ability. 850g/sqm for roof cover, 650g/sqm for sidewall.
3). Connecter: Strong hot-dip galvanized steel, zinc thickness over 80um.
Main Profiles: | Available Sections: 203x112x4mm, 255x112x4.5mm | ||||
300x120x5/8mm | |||||
Material: Hard pressed extruded aluminum alloy T6061/T6 | |||||
Features: Stainless | |||||
Cover | Density: 850g/sqm double coated blockout white PVC for roof | ||||
650g/sqm translucent white PVC for side walls | |||||
Features: Water proof,UV resistant,fire retardant(DIN4 102,B1,M2) | |||||
Components: | Superior enclosure with hot dip galvanized steel |
Specification:
Item | Width(m) | Eave Height(m) | Peak Height(m) | Longest Parts(m) | Max WindLoad |
MT10 | 10 | 4 | 8.3 | 5.6 | 80-100KMH |
MT12 | 12 | 4 | 8.7 | 7.56 | |
MT15 | 15 | 4 | 8.9 | 8.1 | |
MT20 | 20 | 4 | 11.4 | 10.7 | |
MT25 | 25 | 4 | 11.5 | 10.7 | |
MT30 | 30 | 4 | 13.6 | 10.7 | |
MT40 | 40 | 4 | 15.2 | 10.7 |
Optional accessories for gazebo tent:
1). Covers: colourful cover(white, red, blue, green, black), transparent cover
2). Sidewalls: PVC fabric wall, glass wall, sandwich pannel wall
3). Windows: dome or square clear PVC windows, mesh window, glass window
4). Doors: soft PVC rolling door, double-swings glass door, hard PVC door,
5). Wooden flooring system
6). Drapers, curtain, lighting, AC, carpet, etc.
Package:
1. aluminum frame packed in membrane film ;
2. hardware packed in solid carton box ;
3. roof and sidewall in professional PVC carry bag ;
4. Customized package.
About Us:
We are the tent manufacturer,our factory was built on 2007, Located in Suzhou Taicang Economic Development Zone,we have done well in tent for more than 12 years,we have 260 workers and 33350 square meters workshop.Our tent has a span of 3-70 meters and is widely used in large-scale conference venues, new product launches, major sports events, industrial plants, emergency relief and other outdoor activities. It has the advantages of low-cost construction, short delivery, and long service life.
Over the years, WT Tent have actively participated in important social charity activities: the 2008 Beijing Olympic Games, the Wenchuan Earthquake Relief, and the 2010 Shanghai World Expo and other large-scale charity events. In recent years, we have focused on R&D and manufacturing, selling and renting smart tents to contribute to the social building system.
