Specifications
Brand Name :
WT
Model Number :
WT10-40
Certification :
ISO9001, DIN 4102 B1, M2
Place of Origin :
CHINA
MOQ :
100sqm
Price :
US$30~50/sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000sqm per month
Delivery Time :
7~15 working days
Packaging Details :
1). Aluminum frame packed in membrane film. 2). Hardware packed in solid wooden box. 3). Roof and sidewall in professional PVC carry bag.
Features :
Anti-rust, flame retardant, UV resistance, waterproof
Application :
Outdoor Events, Wedding, Party, Festival, etc.
Name :
Outdoor Marquee Tent
Type :
A shaped tent
Frame :
High Reinforce Aluminum Alloy
Cover :
double PVC coated polyester textile
Connectors :
Hot-dip Galvavized Steel Components
Size :
10x40m
Wall height :
4m/5m/6m
Loading :
800-1000 People Available
Color :
white, transparent, red, black, etc.
Wind Resistance :
80-100km/h
Description

10x40 Transparent Marquee Canopy Tent PVC Fabric Corrosion Resistant

Summarize:

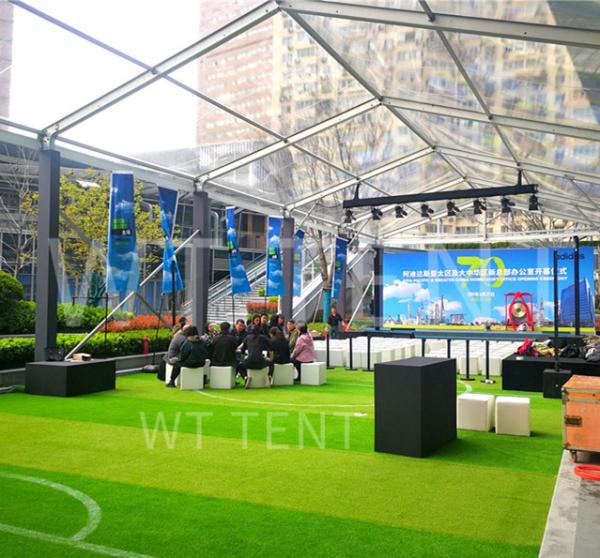

This 10*40M large tent we customized to Addidas as a ceremony event tent for Aisa-Pacific & Greater China Homecourt Office Opening ceremony, they invited super star Beckham to witness this important moment in Shanghai 2019. The Cleat roof tent between some cement buildings like a crytal palace with green flooring decoration. With features of light weight, corrosion resistant and durable. The PVC coated fabric cover is made of environment friendly materials which is waterproof, UV protected and flame retardant.
With whole closed designof frame and cover, our tents cannot be affected easily by weather such as wind and rain.

Furthermore, our tents are mobile assembly constructions which adapt module design for fast building up. It means easy to dismantle and transport after using and can be changed to other locations for multiple installations. By the way, you can increase the size or change the shape as you like through adjust some addtional components. For easy to seperate diiferent kinds of A shaped tents, we usually name it according to the span width which range from 3m to 60m. Internal space without any load-bearing pillars ensure 100% internal space usage.

This series tents have been widely used in outdoor temporary event, wedding party, festival rituals, trade show, promotional products, sports events and other activities. Some special circumstance, it also can be used for temporary storage and temporary workshop and emergency relief purposes.

Features:

1, With modular design and less components , safe and secure , easy to assemble and dismantle , easily transport.

2, Hard pressed GB6061/T6 aluminum alloy is in high strength and has been anodized for corrosion resistance.

3, Using the PVC tarpaulins that durable, waterproof, easy cleaning, UV protected and flame restardant.

4, The aluminium structure can resist up to 100km/h wind and 0.5kn/sqm snow.

5, Internal space without any load-bearing pillars ensure 100% internal space usage.

6, Widely usage which can used for temporary storage, temporary activity, emergency relief purposes in some special circumstances.

Specifications:

Model Span width Eave height Ridge height Bay distance Length Frame Profile
WT3A 3m 2.5m 3.0m 3m 6m+3m more 84x48x3mm
WT4A 4m 2.5m 3.2m 3m 6m+3m more 84x48x3mm
WT5A 5m 2.5m 3.4m 3m 6m+3m more 84x48x3mm
WT6A 6m 2.5m 3.6m 3m 6m+3m more 84x48x3mm
WT8A 8m 2.5m 3.9m 3m 9m+3m more 84x48x3mm
WT9A 9m 2.5m 4.1m 3m 9m+3m more 84x48x3mm
WT10A 10m 2.5m 4.3m 3m 9m+3m more 84x48x3mm
WT6B 6m 3m 4.2m 3m 6m+3m more 120x48x3mm
WT9B 9m 3m 4.5m 3m 9m+3m more 120x48x3mm
WT12B 12m 3m 5.1m 3m 9m+3m more 120x48x3mm
WT10C 10m 3m 4.7m 5m 10m+5m more 120x68x3mm
WT12C 12m 3m 5.1m 5m 10m+5m more 120x68x3mm
WT15C 15m 3m 5.4m 5m 10m+5m more 120x68x3mm
WT10D 10m 4m~6m 5.8m~7.8m 5m 10m+5m more 166x88x3mm
WT12D 12m 4m~6m 6.0m~8.0m 5m 10m+5m more 166x88x3mm
WT15D 15m 4m~6m 6.5m~8.5m 5m 10m+5m more 166x88x3mm
WT18D 18m 4m~6m 7.0m~9.0m 5m 10m+5m more 166x88x3mm
WT10E 10m 4m~6m 5.8m~7.8m 5m 10m+5m more 203x112x4mm
WT12E 12m 4m~6m 6.0m~8m 5m 10m+5m more 203x112x4mm
WT15E 15m 4m~6m 6.5m~8.5m 5m 10m+5m more 203x112x4mm
WT18E 18m 4m~6m 7.0m~9.0m 5m 20m+5m more 203x112x4mm
WT20E 20m 4m~6m 7.2m~9.2m 5m 20m+5m more 203x112x4mm
WT21F 21m 4m~6m 7.4m~9.4m 5m 20m+5m more 255x112x4.5mm
WT25F 25m 4m~6m 8.0m~10.0m 5m 20m+5m more 255x112x4.5mm
WT30F 30m 4m~6m 8.8m~10.8m 5m 30m+5m more 255x112x4.5mm
WT40G 40m 4m~6m 10.5m~12.5m 5m 40m+5m more 300x125x5mm
WT50G 50m 4m~6m 12.1m~14.1m 5m 50m+5m more 300x125x5mm
WT60G 60m 4m~6m 13.7m~15.7m 5m 60m+5m more 300x125x5mm

Optional Accessories:

WT's outdoor wedding party tent has a variety of configurations available for purchase, its function and purpose has been further expanded, common configuration are following: side wall covering with transparent PVC window, ground anchors, columns bearing plate, interior ceiling, glass walls glass door, ABS hardware wall, transparent tarpaulin and side wall coverings, floor systems, drainage channels, other special tents units.

We can also offer many optional relevant decoration accessories:

1, Transparent PVC Windows

2, Glass Wall and Glass Door System

3, ABS Solid Wall System

4, Ceilings and Inside Curtain

5, Wooden Flooring System

6, Ground Anchors

7, Rain Gutters
