Specifications
Brand Name :
WT Tent
Model Number :
Arcum tent
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
30USD-60USD/SQM
Payment Terms :
L/C, T/T
Supply Ability :
10000 sqm per month
Delivery Time :
10-12 days
Packaging Details :
1.Aluminum alloy packed with PE film 2.Steel parts & accessories packed in wooden box 3.PVC fabric packed in professional pvc bag 4.Customized package is available
Frame material :
Aluminum alloy 6061/T6
Cover material :
PVC fabric double surfaces pvc coated polyester textile
Connectors :
Hot-dipped galvanized steel
Color :
White,Red,Green,Transparent,or can be customized color
Roof fabric :
850g/sqm
Side wall fabric :
650g/sqm
Flame retardant :
DIN 4102,B1/M2
Wind loading :
80-100 km/h
Description

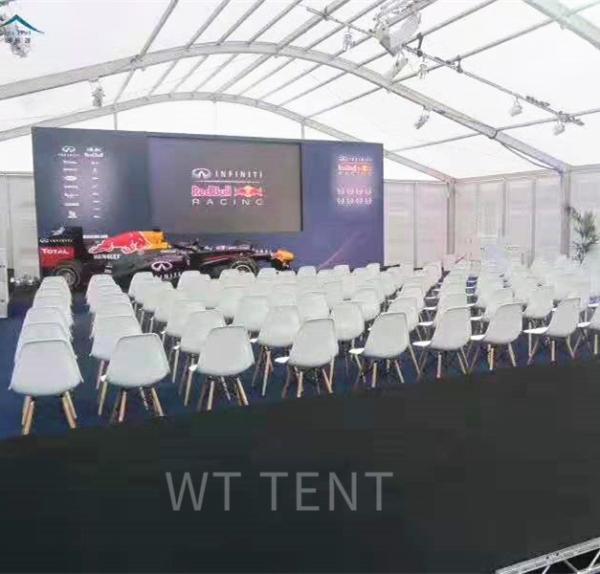

Clear Arcum Tent / High Capacity Glass Wall Tent PVC Roof Pitch With Table

Product Details:

  • Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.

Our Certificates:

1. TUV Rheinland certification;

2. ISO9001 quality system certification;

3. The international tent Industry Association;

4. 2008 Beijing Olympic Games official partner of Honor;

5. France M2 class fire certificate, German DIN4102 B1 level fire certificate, California in the United B701-fire certificate;

6. China Exhibition Industry Association;

7. China's top ten best-selling brands tent industry;

Fixing Methods:

  • Ground anchor(steel peg): For soft ground surface like, earth, sand, lawn, etc.
  • Expansion screw: For hard surface like, cement, stone, or prefab concrete cubic, etc.
  • Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc.

Clear Arcum Tent / High Capacity Glass Wall Tent PVC Roof Pitch With Table

====================Product Parameters====================

Width x Length(m) Eave height(m) Ridge height(m) Aluminum alloy profile size
8×10 2.5 4.1 120×68×3mm
9×10 2.5 4.3 120×68×3mm
10×10 2.5 4.5 120×68×3mm
12×10 2.5 4.7 120×68×3mm
10×10 4 5.8 166×88×3mm
12×10 4 6 166×88×3mm
15×10 4 6.5 166×88×3mm
18×10 4 7 166×88×3mm

===================Our Factory============================

♦ WT Tent was established in 2007,we have 12 years rich experience in tents designing & production.It was our great hornor to be 2008 Beijing Olympic Games tents vendor,we provided 800 sets of pagoda tents 3m x 3m.

♦ Through these years development,we provided a lot of successful solutions to many big companies and events,such as beer festival,shanghai fashion week,adidas's homecourt office opening ceremony in Shanghai,Lincoln test driving meeting,etc...

♦ Our factory owning 30,000 square meters plant area with big production capacity per month,you will never worry about quality and deliver problems.
