500 Person White Polygon Tent , Huge Large Marquee Tent With Roof Pitch
Product Description:

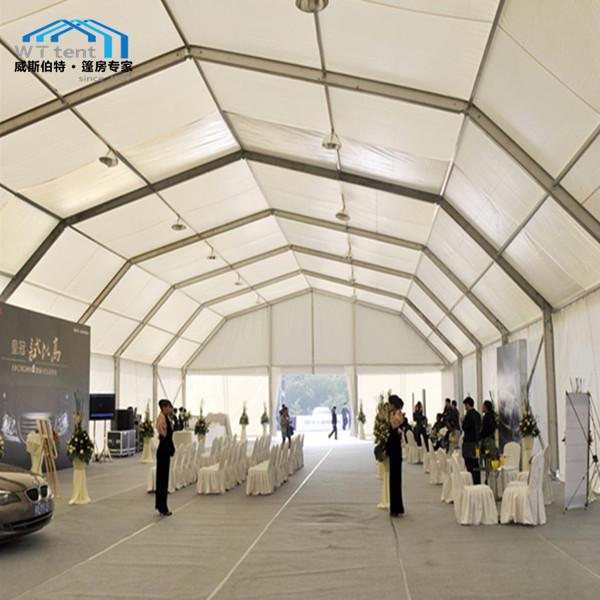

It's our Polygon Tent, which is used for High-end Auto show. Compare with our standard A Type Tent, Polygon Tent has a special shape, which looks special and beautiful.
WT TENT is the excellent aluminum tent manufacturer in China since 2007. In the past 13 years, we own so many good reputations from all over the world. If you buy the tent from us. You don't need to worry anything.
WT TENT is always on your best choice !
Specifications:
Width x Length(m) | Eave height(m) | Ridge height(m) | Bay distance(m) | Aluminum alloy profile size |
11.5×10 | 4 | 7.6 | 5 | 203×112×4mm |
13.5×10 | 4 | 8.5 | 5 | 203×112×4mm |
16.5×15 | 4 | 8.5 | 5 | 203×112×4mm |
18.5×20 | 4 | 9.3 | 5 | 203×112×4mm |
20.7×25 | 4 | 10.1 | 5 | 203×112×4mm |
22.7×25 | 4 | 11.2 | 5 | 203×112×4mm |
27.7×30 | 4 | 12.1 | 5 | 203×112×4mm |
35×35 | 4 | 13.6 | 5 | 203×112×4mm |
♦ Tent Frame: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
♦ Cover Fabric: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
♦ Connector: hot-dip galvanized steel
♦ Allowed Temperature Condition: -30 degrees Celsius~+70 degree Celsius
♦ Wind Loading: min. 100km/h (can be reinforced)
♦ Snow Load: 30kg/sqm (snow can't stay if use big degree roof pitch design)
♦ Easy to be assembled and dismantled easily and repeatedly, movable.
♦ No pole inside, 100% available interior space.
♦ Applications:Widely used for parties, weddings, events, celebrations, sports, trade shows, warehouse,conferences, cafe shops, restaurants, corporate events, etc.
Fixing Methods:
Accessories:
♦ Tent Covers: different colors are available, transparent cover, inflatable roof cover
♦ Side Windows: dome or square clear PVC windows, mesh window, glass window
♦ Wooden Flooring System: VIP cassette flooring, simple cassette flooring
♦ Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, the rolling shutter(automatic or manual)
♦ Side Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
♦ Fixing Methods: ground anchors, weight plate, expandable bolts
♦ Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
♦ Optional Items: table, chair, lighting, AC, carpet, installation tools, booth, mobile toilet, etc.
