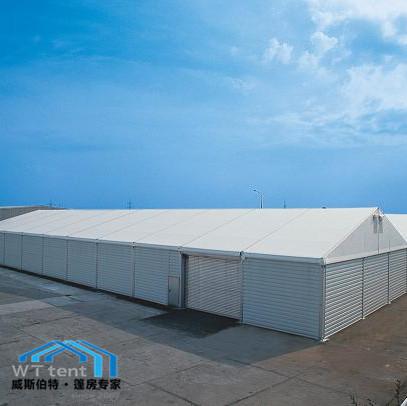

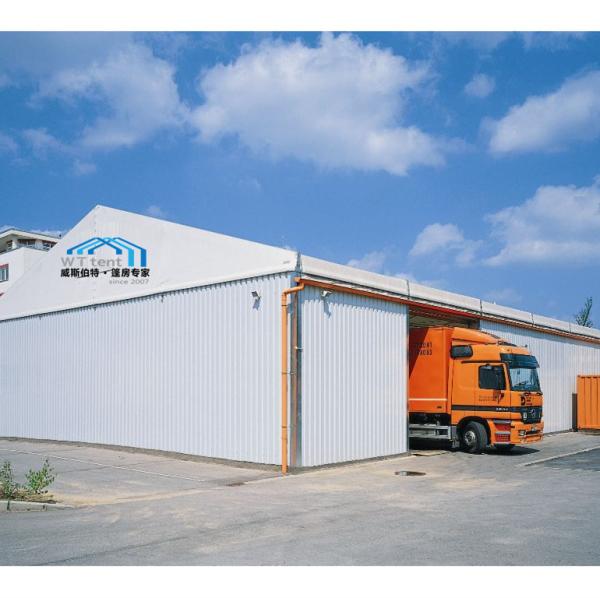

Huge Storage Warehouse Tent with steel plates hard walls and Roller Shutter Door Wind Resistant
Summarize:
Our temporary warehouse tent has been widely used in the world since 2007. All event tent is made of aluminium alloy frame and high quality steel plates,more durable and for a temporary building, and install the instrial wind resistant roller shutter doors per customized size, also provide aluminum double wings door or single wing door with related accessories in need for your safety projects.
Usually the frame is made of hard pressed 6061/T6 aluminum alloy which was qualified by National Center of Analysis and Testing for Nonferrous Metals and Electronic Materials. After wind test and destructive test by professional organizations, the aluminum structure was proved t be strictly conducted in EU quality control standards. Roof covers and side walls are made of flame retardant double PVC coated polyester textile strictly based on the European standard DIN 4102B1, M2 while is has features of waterproof and UV protected.
Features:
1, Special modular design with less components , safe and secure , easy to assemble and dismantle , easily transport.
2, Hard pressed GB6061/T6 aluminum alloy is in high strength and has been anodized for corrosion resistance.
3, The PVC tarpaulins is durable, waterproof, easy cleaning, UV protected and flame restardant.
4, The aluminium structure of industrial tent can resist up to 100km/h wind and 0.5kn/sqm snow.
5, Internal space without any load-bearing pillars ensure 100% internal space usage.
6, Widely usage which can used for exhibitions, outdoor events, temporary activity, temporary warehouse, emergency relief and so on.
Specifications:
Model | Span width | Eave height | Ridge height | Bay Distance | Length | Frame Profile |
WT3A | 3m | 2.5m | 3.0m | 3m | 6m+3m more | 84x48x3mm |
WT4A | 4m | 2.5m | 3.2m | 3m | 6m+3m more | 84x48x3mm |
WT5A | 5m | 2.5m | 3.4m | 3m | 6m+3m more | 84x48x3mm |
WT6A | 6m | 2.5m | 3.6m | 3m | 6m+3m more | 84x48x3mm |
WT8A | 8m | 2.5m | 3.9m | 3m | 9m+3m more | 84x48x3mm |
WT9A | 9m | 2.5m | 4.1m | 3m | 9m+3m more | 84x48x3mm |
WT10A | 10m | 2.5m | 4.3m | 3m | 9m+3m more | 84x48x3mm |
WT6B | 6m | 3m | 4.2m | 3m | 6m+3m more | 120x48x3mm |
WT9B | 9m | 3m | 4.5m | 3m | 9m+3m more | 120x48x3mm |
WT12B | 12m | 3m | 5.1m | 3m | 9m+3m more | 120x48x3mm |
WT10C | 10m | 3m | 4.7m | 5m | 10m+5m more | 120x68x3mm |
WT12C | 12m | 3m | 5.1m | 5m | 10m+5m more | 120x68x3mm |
WT15C | 15m | 3m | 5.4m | 5m | 10m+5m more | 120x68x3mm |
WT10D | 10m | 4m~6m | 5.8m~7.8m | 5m | 10m+5m more | 166x88x3mm |
WT12D | 12m | 4m~6m | 6.0m~8.0m | 5m | 10m+5m more | 166x88x3mm |
WT15D | 15m | 4m~6m | 6.5m~8.5m | 5m | 10m+5m more | 166x88x3mm |
WT18D | 18m | 4m~6m | 7.0m~9.0m | 5m | 10m+5m more | 166x88x3mm |
WT10E | 10m | 4m~6m | 5.8m~7.8m | 5m | 10m+5m more | 203x112x4mm |
WT12E | 12m | 4m~6m | 6.0m~8m | 5m | 10m+5m more | 203x112x4mm |
WT15E | 15m | 4m~6m | 6.5m~8.5m | 5m | 10m+5m more | 203x112x4mm |
WT18E | 18m | 4m~6m | 7.0m~9.0m | 5m | 20m+5m more | 203x112x4mm |
WT20E | 20m | 4m~6m | 7.2m~9.2m | 5m | 20m+5m more | 203x112x4mm |
WT21F | 21m | 4m~6m | 7.4m~9.4m | 5m | 20m+5m more | 255x112x4.5mm |
WT25F | 25m | 4m~6m | 8.0m~10.0m | 5m | 20m+5m more | 255x112x4.5mm |
WT30F | 30m | 4m~6m | 8.8m~10.8m | 5m | 30m+5m more | 255x112x4.5mm |
WT40G | 40m | 4m~6m | 10.5m~12.5m | 5m | 40m+5m more | 300x125x5mm |
WT50G | 50m | 4m~6m | 12.1m~14.1m | 5m | 50m+5m more | 300x125x5mm |
WT60G | 60m | 4m~6m | 13.7m~15.7m | 5m | 60m+5m more | 300x125x5mm |
Optional Accessories:
WT's industry temporary warehouse tents have a variety of configurations which is available for purchase, its function and purpose has been further expanded, common configuration are following: side wall covering with transparent PVC window, ground anchors, columns bearing plate, interior ceiling, glass walls glass door, ABS hardware wall, transparent tarpaulin and side wall coverings, floor systems, drainage channels, other special tents units.
We can also offer many optional relevant accessories as following:
1, Transparent PVC Windows for good lighting
2, Glass Wall and Glass Door System
3, Optional Solid Wall System : ABS, color steel, rocky, etc.
4, Rolling door or Flexible lifting door System
5, Ceiling or Flooring System
6, Fixed system : Expansion screw, Loading plate, Ground anchor, etc.
7, Rain Gutters
