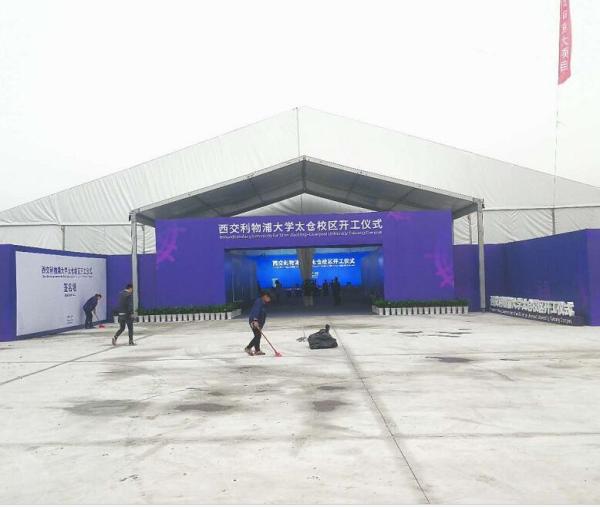

40x50 Huge Custom Made Tents Height 6m University Ground Breaking Ceremony
Overview:
These types of tents can be great additions to your regular sports viewing ensemble, specifically because they’ll keep you comfortable and protected no matter what type of weather event may come your way. There’s also enough space inside them for your to keep snacks, extra clothes, and anything else you might need safe and dry too.
Features:
1). No pole inside, 100% space is available;
2). 100% waterproof, proof, anti-fire, UV-protection, can be environmentally controlled in any climate;
3). Wind load: max. 100km/h,Snow load: 75kg/sqm
Material:
1). Frame: Hard pressed extruded aluminium 6061 /T6 (15HW) which can last over 15 to 20 years. Easy to be assembled and dismantled, movable.
2). Fabric: High quality double PVC-coated polyester textile, 850g/sqm,100% waterproof, flame retardant to DIN4102 B1, M2(European standard ), UV resistant, tear resistant, self-cleaning ability. 850g/sqm for roof cover, 650g/sqm for sidewall.
3). Connecter: Strong hot-dip galvanized steel, zinc thickness over 80um.
Main Profiles: | Available Sections: 203x112x4mm, 255x112x4.5mm | ||||
300x120x5/8mm | |||||
Material: Hard pressed extruded aluminum alloy T6061/T6 | |||||
Features: Stainless | |||||
Cover | Density: 850g/sqm double coated blockout white PVC for roof | ||||
650g/sqm translucent white PVC for side walls | |||||
Features: Water proof,UV resistant,fire retardant(DIN4 102,B1,M2) | |||||
Components: | Superior enclosure with hot dip galvanized steel |
Specification:
Item | Width(m) | Eave Height(m) | Peak Height(m) | Longest Parts(m) | Max WindLoad |
MT10 | 10 | 4 | 8.3 | 5.6 | 80-100KMH |
MT12 | 12 | 4 | 8.7 | 7.56 | |
MT15 | 15 | 4 | 8.9 | 8.1 | |
MT20 | 20 | 4 | 11.4 | 10.7 | |
MT25 | 25 | 4 | 11.5 | 10.7 | |
MT30 | 30 | 4 | 13.6 | 10.7 | |
MT40 | 40 | 4 | 15.2 | 10.7 |
Optional accessories for gazebo tent:
1). Sidewalls: PVC fabric wall, glass wall, sandwich pannel wall
2). Windows: dome or square clear PVC windows, mesh window, glass window
3). Doors: soft PVC rolling door, double-swings glass door, hard PVC door,
4). Wooden flooring system
5). Drapers, curtain, lighting, AC, carpet, etc.
Package:
1. aluminum frame packed in membrane film ;
2. hardware packed in solid carton box ;
3. roof and sidewall in professional PVC carry bag ;
About Us:
We are the tent manufacturer,our factory was built on 2007, Located in Suzhou Taicang Economic Development Zone,we have done well in tent for more than 12 years,we have 260 workers and 33350 square meters workshop.Our tent has a span of 3-70 meters and is widely used in large-scale conference venues, new product launches, major sports events, industrial plants, emergency relief and other outdoor activities. It has the advantages of low-cost construction, short delivery, and long service life.
Over the years, WT Tent have actively participated in important social charity activities: the 2008 Beijing Olympic Games, the Wenchuan Earthquake Relief, and the 2010 Shanghai World Expo and other large-scale charity events. In recent years, we have focused on R&D and manufacturing, selling and renting smart tents to contribute to the social building system.
