Fiber Optic Single Jacket Mini Span ADSS Drop Cable 50m 80m 100m
Fiber Optic Single Jacket Mini Span ADSS Drop Cable 50m 80m 100m
Fiber Optic Single Jacket Mini Span ADSS Drop Cable 50m 80m 100m
Fiber Optic Single Jacket Mini Span ADSS Drop Cable 50m 80m 100m
Fiber Optic Single Jacket Mini Span ADSS Drop Cable 50m 80m 100m
Fiber Optic Single Jacket Mini Span ADSS Drop Cable 50m 80m 100m
Specifications
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
Place of Origin :
CHINA
MOQ :
2KM
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Delivery Time :
5-10 DAYS
Packaging Details :
WOODEN DRUM
Model NO. :
ADSS
Delivery :
EXW/FOB/CIF
Country of Origin :
Shenzhen
Outer diameter :
12.5
Description

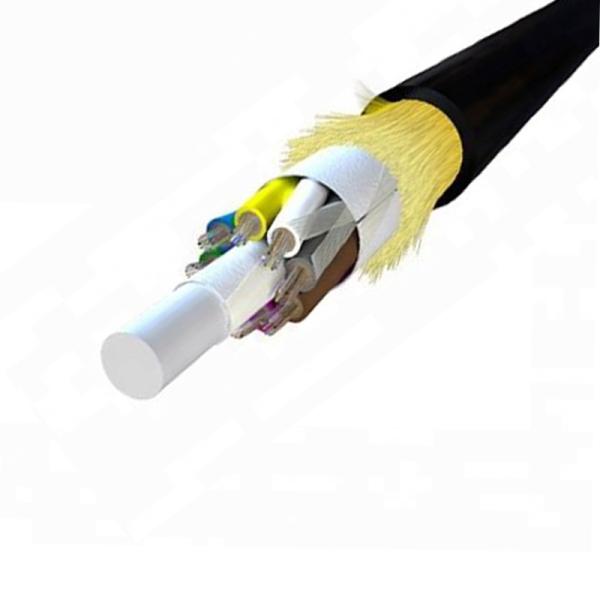

All Dielectric Self-supporting Aerial Cable(ADSS)

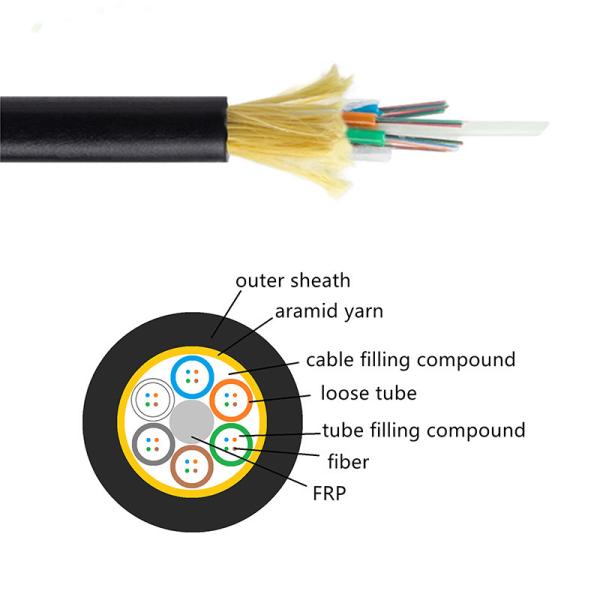

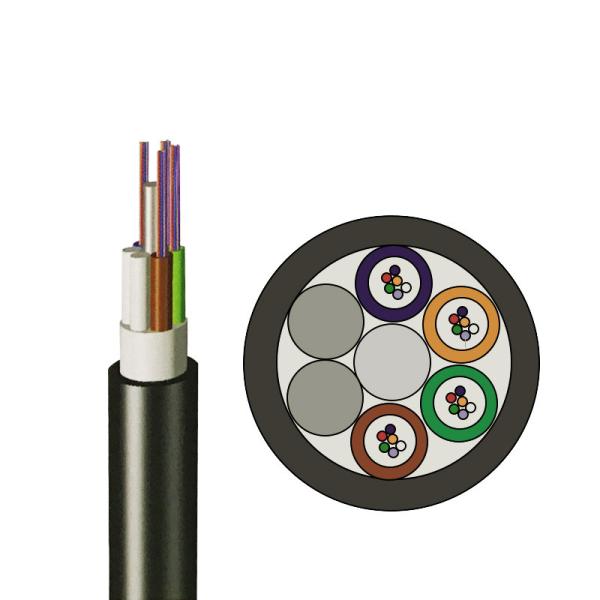

Single Jacket Loose Tube Cable ADSS Outdoor Optical Fiber Cable

Description for ADSS Optical Cable

ADSS (All Dielectric Self-Supporting) Cable is designed with a tensile strength that will provide the necessary resistance to sag to overcome the effects of its own weight, ice and wind, and the cable span to remain serviceable, even oververy long spans, for its entire lifetime.

The small and light nature of the ADSS cable will reduce the load on tower structures for some external influencing factors like cable weight, wind, ice, etc. The structure design will not only prevent moisture and chemical attacks but also will protect the polymer strength elements from the effect of solar ultraviolet light. Besides, the strong structure will also allow up to 700m lengths to be installed between support towers.

Optical Characteristics

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm 　 　 ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm 　 　 ≤1.0 dB/km ≤1.0 dB/km
　 @1310nm ≤0.36 dB/km ≤0.40 dB/km 　 　
　 @1550nm ≤0.22 dB/km ≤0.23dB/km 　 　
Bandwidth (Class A) @850nm 　 　 ≥500 MHz·km ≥200 MHz·km
@1300nm 　 　 ≥1000 MHz·km ≥600 MHz·km 　
Numerical Aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm 　 　

Technical Parameters

Outer diameter weight tension kN Ref.daily max.working tension kN Max allowable working tension kN Break strength kN Strength member CSA mm2 Modulus of elasticity kN/ mm2 Heat expansion coefficient ×10-6/k Suitable span (m) (NESC Standard,m)
PE sheath AT sheath A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18 0.3 670 460 650 460
15.5 190 204 9 26 60 32.2 19.1 0.1 750 530 750 510
15.6 194 208 10.5 28 70 33 19.6 0.1 800 560 800 560
16.3 211 226 12.75 34 85 40 20.1 0.1 880 650 880 650
16.8 226 242 15.45 41 103 48 24 -0.4 1000 750 1000 760
17.2 236 253 16.2 45 108 51 25.1 -0.5 1100 800 1100 830
17.9 249 266 18 50 120 58.8 26.1 -0.8 1180 880 1180 900

Features for ADSS Optical Cable

  • Can be installed without shutting off the power
  • Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  • Large span lengths
  • Good performance of tensile strength and temperature
  • The design life span is 30 years
