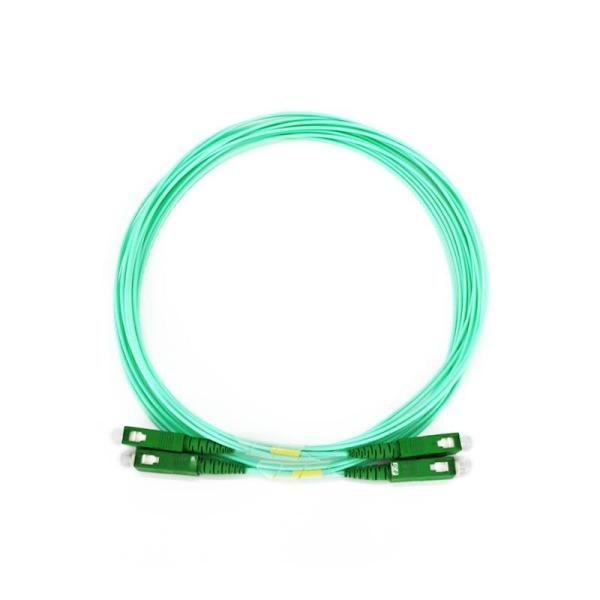

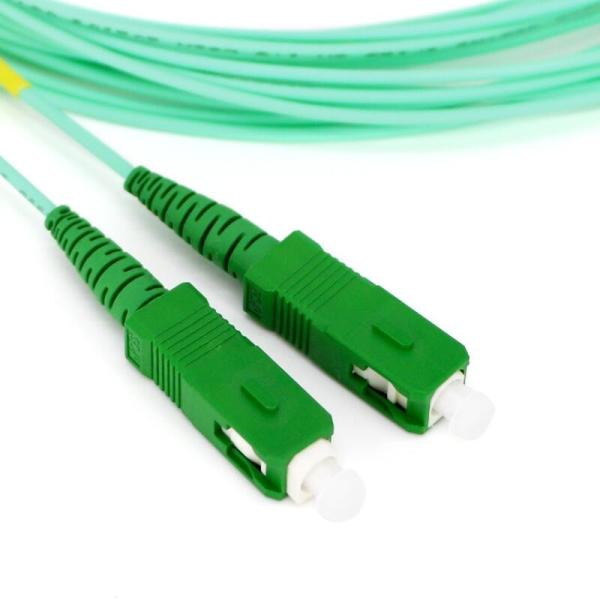

SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm Aqua Green White
SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm Aqua Green White
SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm Aqua Green White
SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm Aqua Green White
SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm Aqua Green White
SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm Aqua Green White
Specifications
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Delivery Time :
2-7 DAYS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Model NO. :
SCASCASMSX30AQ
Delivery :
EXW/FOB/CIF Etc.
Country of Origin :
GUA, CN
Description

SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm 1.5m 2m 3.5m 3m 4m Aqua Green White LSZH Cable

SCAPC Fiber Patch cords

Description

A ptachcords can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. The range of high performance SC, FC, ST, LC, MTRJ, MU, fiber optic cables come in any combination, including angled (angle polished) SCA, MUA, FCA, STA, LCA, MPO Angled. We offer a range of Flammability options, PVC and LSZH. Features include, low insertion loss and outstanding return loss performance.

Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core

Application

  • ODF of optical transmission system

  • Connection of optical transmission equipments

  • Telecommunication network

  • Computer network

  • CATV

  • High quality graphic transmission network

  • High speed data transmission network

Features

  • Quick, highly repetable, low-loss connections

  • Simplex and duplex

  • Singlemode and multimode

  • PC and APC polishing

  • Various boot(cable) sizeds available

  • Various connectors available

  • Interferential parameters

  • Hybrid patch-cords are available upon request

Specifications

SPECIFICATION: 　 　 　 　
Connector type
 　 FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc.
Cable Length m 1, 2, 3, 5, 10 (±10mm)
Cable diameter mm 3.0, 2.0, 0.9
Operating wavelength nm 1310, 1490,1550
Core Type 　 G.652, G655, G657, OM1, OM2, OM3, OM4
Ferrule End-face 　 PC UPC APC
Insertion Loss dB ≤0,2
Max. Insertion Loss dB ≤0,3
Return Loss dB ≥45 ≥50 ≥55
Operation Temperature C -40 ~ +80
Core Diameter um 9/125, 62.5/125, 50/125
Durability 　 ≤0.1dB change, 500 Cycles
Sheath Color 　 SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized
Package 　 Each patchcord is packaged individually and individually test certification.
