H Type FTTH Optical Fiber Cable GJXFHA Fiber Cables 2F 7MM
H Type FTTH Optical Fiber Cable GJXFHA Fiber Cables 2F 7MM
H Type FTTH Optical Fiber Cable GJXFHA Fiber Cables 2F 7MM
H Type FTTH Optical Fiber Cable GJXFHA Fiber Cables 2F 7MM
H Type FTTH Optical Fiber Cable GJXFHA Fiber Cables 2F 7MM
H Type FTTH Optical Fiber Cable GJXFHA Fiber Cables 2F 7MM
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM, CARTON
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
GJYXFHA
Delivery :
FOB
Description

H Type FTTH Duct Drop Cable GJXFHA

Description

This drop cable is designed for duct installation in FTTH project connecting. The optical fiber unit is positioned in the center. 2 parallel strength members are placed at two sides. The cable is with a jacket to become FTTH Drop Cable. Then FTTH Drop Cable is completed with waterproof tape, AL-plastic tape and outer jacket.

Features

  • Choice of Fibre Type

  • Colour code of Fibre

  • High water resistance

  • High crush resistance

  • Choice Sheath Material

  • Low attenuation and dispersion

  • Good flexibility and bending performance

Appicable fieds

Aerial, Duct

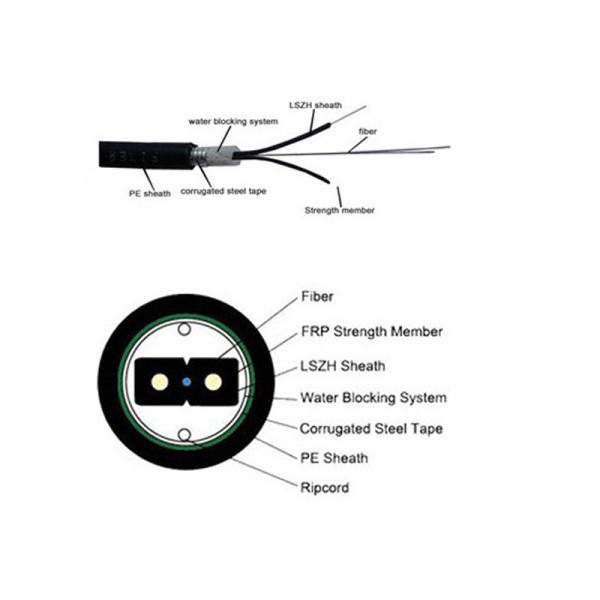

Structure Characters

Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath

Specifiction

Cable code

Fiber Count

Cable Size (mm)

Cable Weight(kg/km)

Tensile Strenth Long/Short Term(N)

Crush Resistance Long/Short Term(N/100mm)

Bending Radius Static Dynamic (mm)

GJXFHA-1

1

7

47

30/60

300/1000

15/30

GJXFHA-2

2

7

47

30/60

300/1000

15/30
