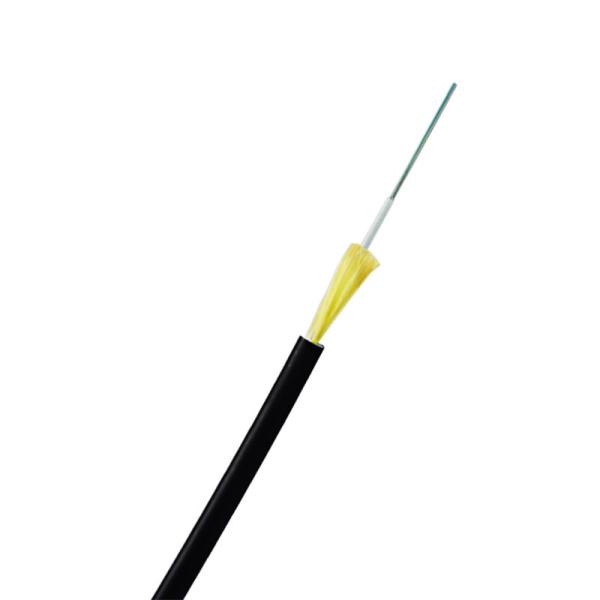

Complex Hybrid Dual Mode Fiber Optic Cable Micro ADSS 3.8 mm
Complex Hybrid Dual Mode Fiber Optic Cable Micro ADSS 3.8 mm
Complex Hybrid Dual Mode Fiber Optic Cable Micro ADSS 3.8 mm
Complex Hybrid Dual Mode Fiber Optic Cable Micro ADSS 3.8 mm
Complex Hybrid Dual Mode Fiber Optic Cable Micro ADSS 3.8 mm
Complex Hybrid Dual Mode Fiber Optic Cable Micro ADSS 3.8 mm
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM, CARTON
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
FTTH GJYFJH
Description

Fiber Optic Dual-Purpose Outdoor Drop Cable

Description

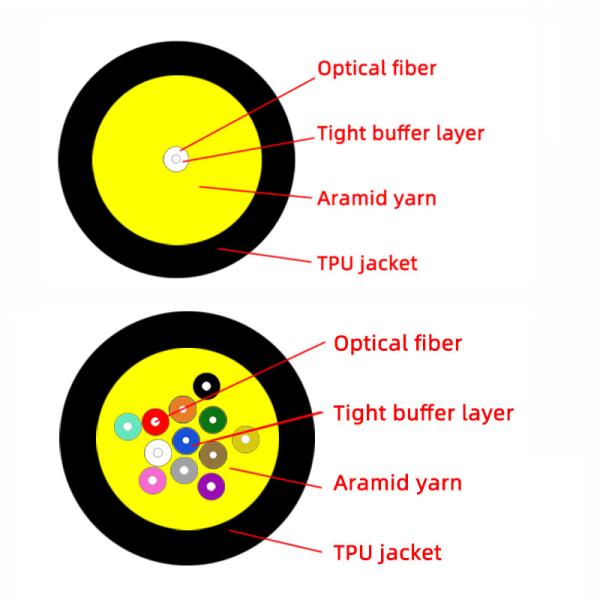

Micro ADSS Optical Drop cable consists of individually colour coated 250um fibers, reinforced with aramid yarns as strength member and covered with UV and Flame resistant LSZH jacket or a thermoplastic urethane out sheath which enable cable with excellent abrasions resistance and to be applied to extreme cold temperature.

Single-mode, dual-purpose, fibre cable is designed for a multitude of applications and is suitable for both push and blown micro duct applications as well as aerial installations up to 50m. Its UV stabilised jacket makes it suitable for both indoor and outdoor


Features

  • Good mechanical and environmental characteristics.
  • Excellent abrasion resistance and cold temperature workability.
  • Solf, flexible, easy to lay and splice, and with big capacity transmission.

Application

  • Indoor and outdoor FTTX drop cable installs
  • Duct 8/5mm Micro Tube for push and blown fibre applications
  • Aerial installations up to 50m


Specification

Fibre Core 2
Tube Diameter 2.4 mm
Fibre per tube 2
Cable Diameter 3.8 mm ± 5%
Cable Weight 12 kg / km
Fibre Type G657A2
Installation tensile resistance ( ≤ 0.25% fibre strain) 1.2 times 1km cable weight, not less than 144N
Short term crush 650 N/100mm
Life Expectancy 25 years
Min Bend Radius for installation Static Dynamic 20 x OD 20 x OD
Temperature Performance Range -10°C to 70°C
Attenuation Limits of Individual Fibres
Attenuation at 1310nm ≤ 0.35 dB/km
Attenuation at 1550nm ≤ 0.22 dB/km
Attenuation at 1625nm ≤ 0.24 dB/km
Mode Field Diameter
1310nm 8.6 μm ± 0.4 μm
1550nm 9.6 μm ± 0.5 μm
Glass Geometry
Core / Cladding Concentricity Error ≤ 0.5 μm
Coating Geometry
Coating Diameter 242 μm ± 5 μm
Core / Cladding Concentricity Error ≤ 12 μm
