MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX
MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX
MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX
MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX
MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX
MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
ODVA FTTA
Description

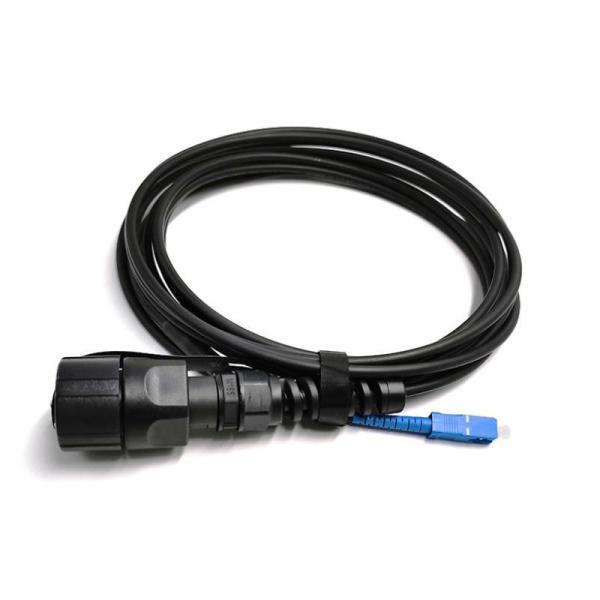

ODVA Type FTTA Outdoor Patch Cord

Description

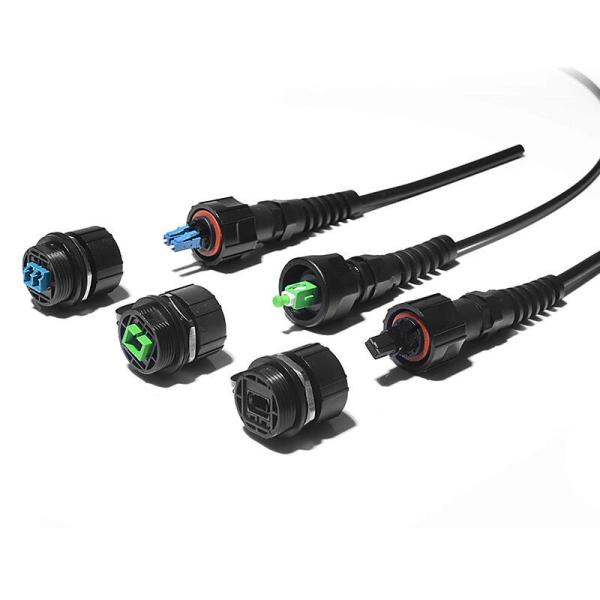

This outdoor waterproof connector attaches to adapter on panel of RRH. The common LC connector pair inside allows easier testing and cleaning. There are two types of connector plugs available: threaded and easy-connect bayonet.Harsh environments where chemicals,corrosive gases and liquids are commonplace.Telecommunication/CATV Systems.FTTX and Special environmental.Mobile routers and internet hardware.

Application

  • Multi-purpose Outdoor.

  • For connection between distribution box and RRH.

  • Deployment in Remote Radio Head cell tower applications.

Features

  • Cost effective solution for in house termination

  • IP67 water and dust protection

  • Wide range of operational temperature for outside plant -40 to +85°C

  • Different cable diameter can be available

  • Intermatable to other Industrial LC adaptor per IEC 61076-3-106

  • No need special tools for assembly

GYFJH Cable Specifications

Cable Type 1:

Fiber Count Cable Dimension mm Cable Weight kg/km Tensile N Crush N/100mm Min. Bend Radius mm Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
1--12 5 25 350 700 1000 2000 20D 10D --30-70℃
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable;

MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX

Cable Type 2:

Fiber Count Cable Dimension mm Cable Weight kg/km Tensile N Crush N/100mm Min. Bend Radius mm Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
1--12 7 45 400 800 1000 2000 20D 10D --3-70℃,
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable;

MPO ODVA Type Outdoor Patch Cord RRH 5mm 7mm Multi Purpose FTTX

ODVA Patchcords Specifications

Item Data
Insertion Loss ≤0.3dB
Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles
Working temperature -20°C~+70°C
Storage temperature -20°C~+70°C
Tensile Data Tensile between junction and fiber cable≥100N
