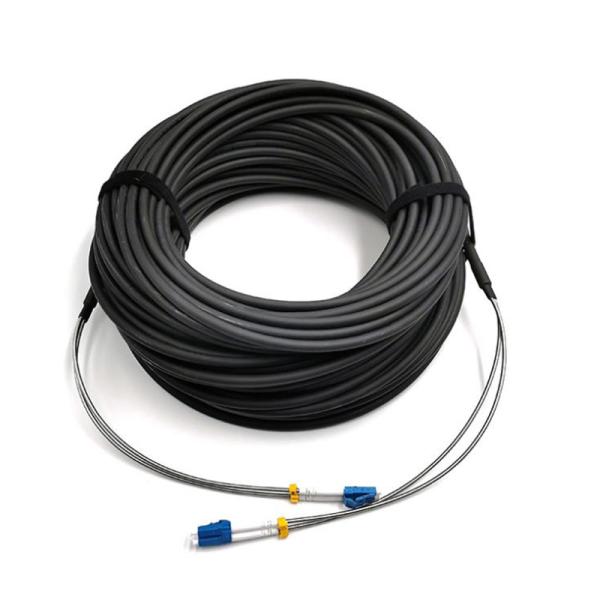

GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M
GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M
GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M
GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M
GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M
GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
CPRI GYFJH
Description

GYFJH CPRI FTTA Outdoor Patch Cord

Description

The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. We supply FTTA (Fiber to the Antenna) , DLC (Dual LC Connector) and SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.

Application

  • Multi-purpose Outdoor.

  • For connection between distribution box and RRH.

  • Deployment in Remote Radio Head cell tower applications.

Features

  • Good mechanical and environmental characteristics;

  • Flame retardant characteristics meet the requirements of relevant standards;

  • The mechanical characteristics of jacket meet the requirements of relevant standards;

  • Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission

  • LC Connector

  • Metal tube GYFJH cable (2cores) Metal tube

  • End A: 0.3CM End B: 34CM5, Meet various requirements of market and clients

GYFJH Cable Specifications

Cable Type 1

Fiber Count Cable Dimension mm Cable Weight kg/km Tensile N Crush N/100mm Min. Bend Radius mm Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
1--12 5 25 350 700 1000 2000 20D 10D --30-70℃,
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable;


Cable Type 2

Fiber Count Cable Dimension mm Cable Weight kg/km Tensile N Crush N/100mm Min. Bend Radius mm Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
12 7 45 400 800 1000 2000 20D 10D --3-70℃,
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable;


GYFJH CPRI FTTA Outdoor Patch Cord LC To LC Single Mode Fiber Patch Cable 5M

CPRI Patchcords Specifications

Item Data
Insertion Loss ≤0.3dB
Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles
Working temperature -20°C~+70°C
Storage temperature -20°C~+70°C
Tensile Data Tensile between junction and fiber cable≥100N
