SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
Armored patchcords
Description

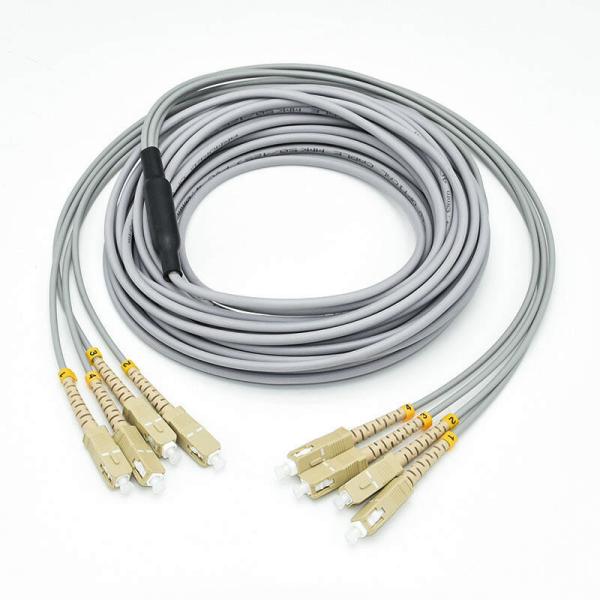

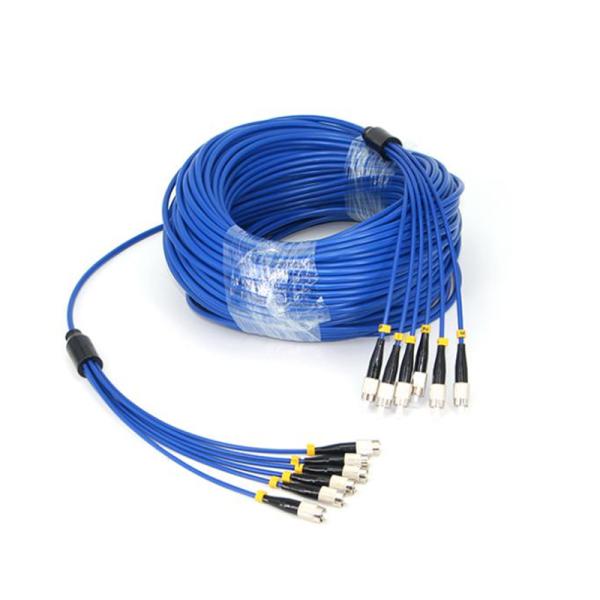

Fiber Optic Armored Patchcords


Description

The armored fiber optic patch cables will not get destroy even stepped by an adult. And they are anti-rodents so that people do not need to worry about the rodent animals like rats may bite the cables and make them broken. Armored fiber optic patchcord can be made similar outer diameter with the standard patchcords which makes them space saving. What is more they can be with different jacket colors and jacket types.Actually they are light and can be with SC, ST, FC,LC, MU,SC/APC, ST/APC,FC/APC,LC/APC etc types of terminations.


Features

  • General purpose and standard stock items

  • Lightweight

  • Pliable

  • Non-stretch

  • High pulling load strength

  • Resists lateral pressure

  • Excellent bending characteristics


Cable Specifications

Fiber Count Tight Diameter mm Cable Diameter mm Cable Weight Kg/km Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100m Bending Radius Static/Dynamic mm
1 0.6/0.9 2 11 300/750 200/1000 20D/10D
1 0.6/0.9 3 15 300/750 200/1000 20D/10D
2 0.6/0.9 3 15 300/750 200/1000 20D/10D
2 0.6/0.9 2.0*4.0 30 300/750 200/1000 20D/10D
2 0.6/0.9 3.0*6.0 40 300/750 200/1000 20D/10D

Armored Patchcords Specifications

Item Data
Insertion Loss ≤0.3dB
Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles
Working temperature -20°C~+70°C
Storage temperature -20°C~+70°C
Tensile Data Tensile between junction and fiber cable≥100N

SX 4C Outdoor Patch Cord 0.3dB Armored Fiber Patch Cord Apc 60db
