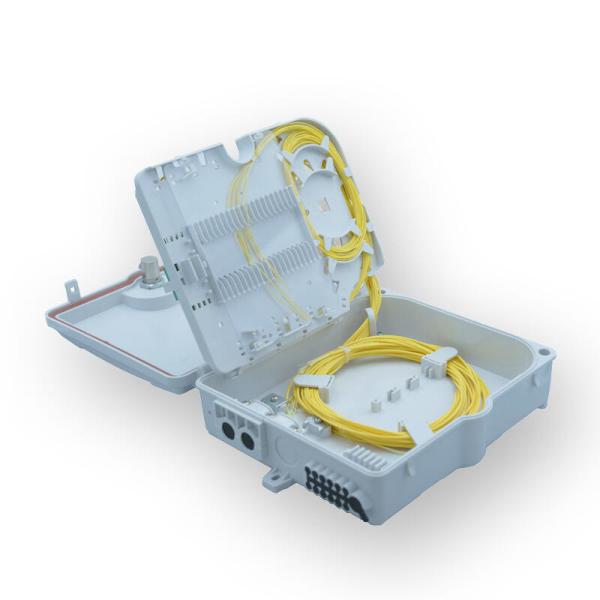

1x8 12 Cores OTB Fiber Optic Splitter Box Outdoor Fiber Distribution Cabinet
1x8 12 Cores OTB Fiber Optic Splitter Box Outdoor Fiber Distribution Cabinet
1x8 12 Cores OTB Fiber Optic Splitter Box Outdoor Fiber Distribution Cabinet
1x8 12 Cores OTB Fiber Optic Splitter Box Outdoor Fiber Distribution Cabinet
1x8 12 Cores OTB Fiber Optic Splitter Box Outdoor Fiber Distribution Cabinet
1x8 12 Cores OTB Fiber Optic Splitter Box Outdoor Fiber Distribution Cabinet
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
OTB-12
Delivery :
FOB
splitter modules :
1*8
protection grade :
IP55
Description

12 Cores OTB Mini Termination Fiber Optic FTTH Distribution Box

Discription

FTTH fiber optical terminal box is used in wiring connection between optical cable and optical communication equipment.It is through adapter in distribution box and optical fiber jumper leads optical signal. It realize optical wiring function and can meet the optical splitter placed to achieve spectral function.It is applicable for wall-mounted and pole-mounted.

Features

  • The material is engineering plastic of high quality and it can be used for indoor,outdoor.
  • Rugged and reliable structure.
  • It is applicable for wall-mounted and pole-mounted.
  • Fiber cables both can entry from the bottom of the box.
  • Supports up to 2pcs 1×8 splitter modules or 1pc 1×16 splitter modules.
  • Compliant with fast-connector and FTTH cable.
  • Available to meet the cut connection function for the live cable.

Application

  • Outdoor environment,IP55
  • Wall mount; pole mount
  • Comprehensive computer network engineering.
  • Intelligent Building Cabling
  • Fiber To The Home (FTTH)
  • Residential Intelligent Network System.
  • Campus Network, Enterprise Network.

Specification

Model Number OTB-12
Name of the product Optic Terminal Box
Environmental temperature -20°C~+55°C
Relative temperature ≤ 85%(+30°C)
weight 2kg
Atmospheric pressure 70kpa~106kpa
Adapter type SC LC
Fiber type G652D,G657A,OM1-OM4Supports up to 2pcs 1×8 splitter modules or 1pc 1×16 splitter modules.
Size 220*180*62mm
application Wall mount; pole mount
Characteristic easy to install,maintain and manage
Accessory 12 pcs shrinking tube sleeves ,expansion tube,ribbon,and sleeve
