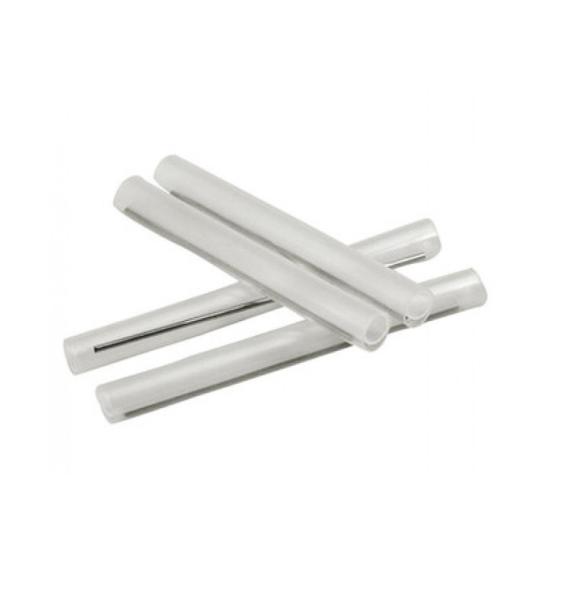

Optical Fiber Accessories Protection Sleeve ROHS 40mm Heat Shrinkable Sleeve
Optical Fiber Accessories Protection Sleeve ROHS 40mm Heat Shrinkable Sleeve
Optical Fiber Accessories Protection Sleeve ROHS 40mm Heat Shrinkable Sleeve
Optical Fiber Accessories Protection Sleeve ROHS 40mm Heat Shrinkable Sleeve
Optical Fiber Accessories Protection Sleeve ROHS 40mm Heat Shrinkable Sleeve
Optical Fiber Accessories Protection Sleeve ROHS 40mm Heat Shrinkable Sleeve
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
60401001
Delivery :
FOB
Shrinking Temperature (°C) :
110 ~ 130
Description

40mm Fiber Optic Ribbon Protection Sleeve Heat Shrink Cable Protector Tube

Description

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).

Constrcture and Features

1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties.

2. Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.
3. Easily use and avoid any damages to the oprical fiber during installation.

4. Sealing structure provides good performanc e to the splicing in the environment with temperature and humidity.

5. Bellcore GR-1380 Compliant
6. RoHS & REACH Compliant

Operating Temperature : -50 - 100°C Shrink Temperature: 90 - 110°C

Technical Data

Shrinking Temperature (°C)

110 ~ 130

Radial Shrinking Rate (%)

>50

Axial Shrinking Rate (%)

<10

Low Temperature Property

No crackle at -55°C lasting 4 hours

Normal Operation Temperature (°C)

-55°C ~ + 135°C

Normal Operature Relative Humidity

≤95%

Spark- over Strength (kV/mm)

≥20

Tensile Strength (Mpa)

20

Loss at -40°C

0.03dB

Loss at +60°C RH95%

0.02dB
