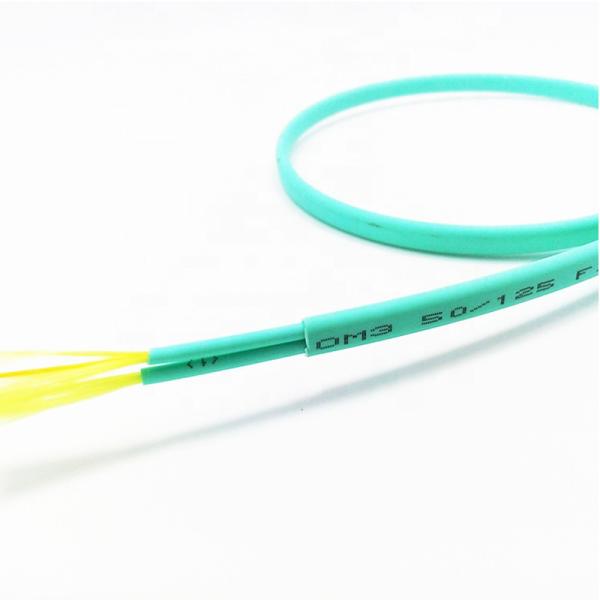

Flat Twin Indoor Optical Fiber Cable LSZH Multimode Duplex Fiber Optic Cable RoHS
Flat Twin Indoor Optical Fiber Cable LSZH Multimode Duplex Fiber Optic Cable RoHS
Flat Twin Indoor Optical Fiber Cable LSZH Multimode Duplex Fiber Optic Cable RoHS
Flat Twin Indoor Optical Fiber Cable LSZH Multimode Duplex Fiber Optic Cable RoHS
Flat Twin Indoor Optical Fiber Cable LSZH Multimode Duplex Fiber Optic Cable RoHS
Flat Twin Indoor Optical Fiber Cable LSZH Multimode Duplex Fiber Optic Cable RoHS
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM, CARTON
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
Indoor Duplex Zipcord
Delivery :
EXW/FOB/CIF
Country of Origin :
GUA,CN
Description

Fiber Optic Flat Twin Duplex Indoor Cable

​Description

Flat Twin Duplex Indoor Cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of flat PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket as out sheath .

Features

  • Two single-fibers as basic unit flat twin configuration.
  • Single-cable with 0.6 tight buffer, Kevlar yarn applied.
  • Flexible or out sheath independent strength member.
  • Excellent mechanical and environmental performance.

Application

  • Adapted to indoor distribution.
  • As pigtail of communication equipment.
  • Suitable for communication equipment served.
  • Able to be installed conveniently.

Temperature Characteristics:

  • Operate temperature range: -20oC to +60oC .
  • Storage temperature range: -20oC to +60oC .

Specification

Out sheath Diameter Inner sheath Diameter Weight Min allowable Tensile Strength (N) Min. allowable Crush Load(N/100mm) Min. Bending Radius (MM)
(MM) (MM) (KG) short term long term short term long term short term long term
3.0×5.0 1.8 18.5 300 150 500 300 20D 10D
3.0×5.0 2 18.5 300 150 500 300 20D 10D
4.0×7.0 2.8 28.5 300 150 500 300 20D 10D
