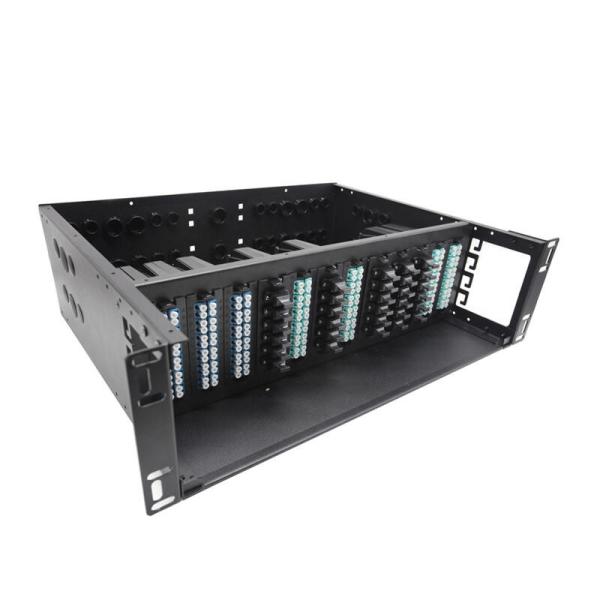

144 Cores MTP MPO Cables Chassis Rack Mount Fiber Patch Panel LGX Module
144 Cores MTP MPO Cables Chassis Rack Mount Fiber Patch Panel LGX Module
144 Cores MTP MPO Cables Chassis Rack Mount Fiber Patch Panel LGX Module
144 Cores MTP MPO Cables Chassis Rack Mount Fiber Patch Panel LGX Module
144 Cores MTP MPO Cables Chassis Rack Mount Fiber Patch Panel LGX Module
144 Cores MTP MPO Cables Chassis Rack Mount Fiber Patch Panel LGX Module
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
MTP MPO Cassette
Delivery :
FOB
Description

MTP MPO Module Chassis Cores Fiber Optic Patch Panel

Description

The fiber optic panel is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
The LGX chassis are available with the wide array of standard and high-density couplers and splitter modules, or it can be ordered empty for those with existing LGX-style splitter modules

Features

  • Adopts high quality engineering plastics and Aluminum alloy material
  • MPO faceplate can be upgraded easily.
  • All the front port are with mark no.easy to identify.
  • Quick and easy installed, flexible in configuration and easy to management


Application

  • Machine rooms of data center and internet
  • Data communication network
  • Optical system access network
  • Storage area networking fiber channel
  • High density architectures


Performance MPO/MTP Connectors

Fiber Type Single Mode Multi-mode
Standard Insertion Loss Typical(dB) ≤0.7 ≤0.5
Low Insertion Loss Typical(dB) ≤0.35 ≤0.35
Return Loss (dB) ≥60(APC) ≥30(PC)
≥50(PC) 　 　
Tensile Strength (kgf) 10
Durability(dB) ≤0.2 500 matings
Working Temperature(ºC) -40 ~+85
Testing Wavelength (nm) 1310/1550 850
